Features: • 200-MHz clock support• 2.5V or 3.3V operation• LVCMOS/LVTTL clock input• LVCMOS-/LVTTL-compatible inputs• 18 clock outputs: drive up to 36 clock lines• 200 ps max. output-to-output skew• Output Enable control• Pin compatible with MPC942C&...

product image

CY29942 Picture
See larger image
SeekIC No. : 004319270 Detail

CY29942: Features: • 200-MHz clock support• 2.5V or 3.3V operation• LVCMOS/LVTTL clock input• LVCMOS-/LVTTL-compatible inputs• 18 clock outputs: drive up to 36 clock lines•...

CY29942 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY29942
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 200-MHz clock support
• 2.5V or 3.3V operation
• LVCMOS/LVTTL clock input
• LVCMOS-/LVTTL-compatible inputs
• 18 clock outputs: drive up to 36 clock lines
• 200 ps max. output-to-output skew
• Output Enable control
• Pin compatible with MPC942C
• Available in Industrial and Commercial
• 32-pin LQFP package


Pinout

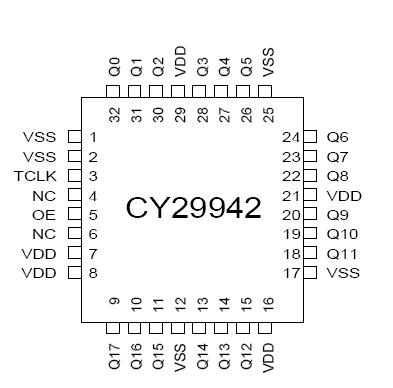

Connection Diagram


Specifications

Maximum Input Voltage Relative to VSS: ............... VSS 0.3V
Maximum Input Voltage Relative to VDD:...............VDD + 0.3V
Storage Temperature: ................................65°C to + 150°C
Operating Temperature: ................................40°C to +85°C
Maximum ESD protection ................................................. 2 kV
Maximum Power Supply: ..................................................5.5V
Maximum Input Current: .............................................±20 mA
This device contains circuitry to protect the inputs against
damage due to high static voltages or electric field; however,
precautions should be taken to avoid application of any voltage
higher than the maximum rated voltages to this circuit. For
proper operation, Vin and Vout should be constrained to the
range:
VSS < (Vin or Vout) < VDD
Unused inputs must always be tied to an appropriate logic voltage
level (either VSS or VDD).


Description

The CY29942 is a low-voltage 200-MHz clock distribution buffer with an LVCMOS or LVTTL compatible input clock. All other control inputs are LVCMOS/LVTTL compatible. The eighteen outputs are 2.5V or 3.3V LVCMOS or LVTTL compatible and can drive 50 series or parallel terminated transmission lines. For series terminated transmission lines, each output can drive one or two traces giving the devices an effective fanout of 1:36. Low output-to-output skews make the CY29942 an ideal clock distribution buffer for nested clock trees in the most demanding of synchronous systems.
