Product Details

Description



Features:

• Output frequency range: 16.67 MHz to 200 MHz
• Input frequency range: 16.67 MHz to 200 MHz
• 2.5V or 3.3V operation
• Split 2.5V/3.3V outputs
• ±2% max Output duty cycle variation
• 11 Clock outputs: Drive up to 22 clock lines
• LVCMOS reference clock input
• 125-ps max output-output skew
• PLL bypass mode
• Spread Aware
• Output enable/disable
• Pin compatible with MPC9352 and MPC952
• Industrial temperature range: 40°C to +85°C
• 32-Pin 1.0mm TQFP package

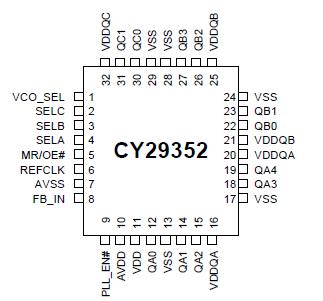

Pinout

  Connection Diagram


Description

The CY29352 is a low voltage high performance 200-MHz PLL-based zero delay buffer designed for high speed clock distribution applications.

The CY29352 features an LVCMOS reference clock input and provides 11 outputs partitioned in 3 banks of 5, 4, and 2 outputs. Bank A divides the VCO output by 4 or 6 while Bank B divides by 4 and 2 and Bank C divides by 2 and 4 per SEL(A:C) settings, see Function Table. These dividers allow output to input ratios of 3:1, 2:1, 3:2, 1:1, 2:3, 1:2, and 1:3. Each LVCMOS compatible output can drive 50 series or parallel terminated transmission lines. For series terminated transmission lines, each output can drive one or two traces giving the device an effective fanout of 1:22.

The PLL is ensured stable given that the VCO is configured to run between 200 MHz to 500 MHz. This allows a wide range of output frequencies from 16.67 MHz to 200 MHz. For normal operation, the external feedback input, FB_IN, is connected to one of the outputs. The internal VCO is running at multiples of the input reference clock set by the feedback divider, see Table 1.

When PLL_EN# is HIGH, PLL is bypassed and the reference clock directly feeds the output dividers. This mode is fully static and the minimum input clock frequency specification does not apply.
