CY25560

Features: • 25- to 100-MHz operating frequency range• Wide (9) range of spread selections• Accepts clock and crystal inputs• Low power dissipation:- 56 mW @ Fin = 25 MHz- 89 mW @ Fin = 65 MHz- 139 mW @ Fin = 100 MHz• Frequency spread disable function• Center spr...

product image

CY25560 Picture
See larger image
SeekIC No. : 004319187 Detail

CY25560: Features: • 25- to 100-MHz operating frequency range• Wide (9) range of spread selections• Accepts clock and crystal inputs• Low power dissipation:- 56 mW @ Fin = 25 MHz- 89 ...

CY25560 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY25560
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 25- to 100-MHz operating frequency range
• Wide (9) range of spread selections
• Accepts clock and crystal inputs
• Low power dissipation:
- 56 mW @ Fin = 25 MHz
- 89 mW @ Fin = 65 MHz
- 139 mW @ Fin = 100 MHz
• Frequency spread disable function
• Center spread modulation
• Low cycle-to cycle jitter
• 8-pin SOIC package
• Commercial and Industrial temperature ranges


Application

• Desktop, notebook, and tablet PCs
• VGA controllers
• LCD panels and monitors
• Printers and multifunction devices (MFP)


Pinout

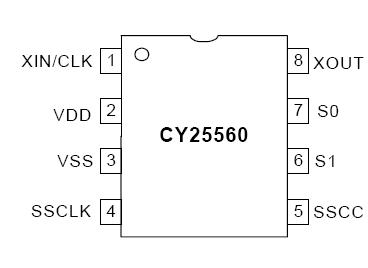

Connection Diagram


Specifications

Supply Voltage (VDD): .................................. 0.5V to +6.0V
DC Input Voltage:....................................0.5V to VDD+0.5V
Junction Temperature ...............................40°C to +140°C
Operating Temperature: .................................. 0°C to 70°C
Storage Temperature............................... 65°C to +150°C
Static Discharge Voltage(ESD)............................ 2,000V-Min
