CY22K7

Features: • Multiple output clocks running at different frequencies-Three open-drain differential CPU outputs running up to 133 MHz-Eight 3.3V synchronous PCI clocks (one free running)-Two 3.3V AGP clocks at 2xPCI-One dedicated 3.3V USB clock at 48 MHz-One 3.3V USB/IO clock at 48 MHz or 24 M...

product image

CY22K7 Picture
See larger image
SeekIC No. : 004319140 Detail

CY22K7: Features: • Multiple output clocks running at different frequencies-Three open-drain differential CPU outputs running up to 133 MHz-Eight 3.3V synchronous PCI clocks (one free running)-Two 3.3...

CY22K7 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY22K7
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Multiple output clocks running at different frequencies
-Three open-drain differential CPU outputs running up to 133 MHz
-Eight 3.3V synchronous PCI clocks (one free running)
-Two 3.3V AGP clocks at 2xPCI
-One dedicated 3.3V USB clock at 48 MHz
-One 3.3V USB/IO clock at 48 MHz or 24 MHz, selectable via power-on latch input
-One 3.3V SDRAM clock output running at the CPU frequency
-Two 3.3V Reference clocks at 14.318 MHz
• Spread Spectrum clocking
-33 kHz modulation frequency
-−0.6% downspread margin
• Dedicated inputs for various functions
• I2C interface
• 48-Pin SSOP package

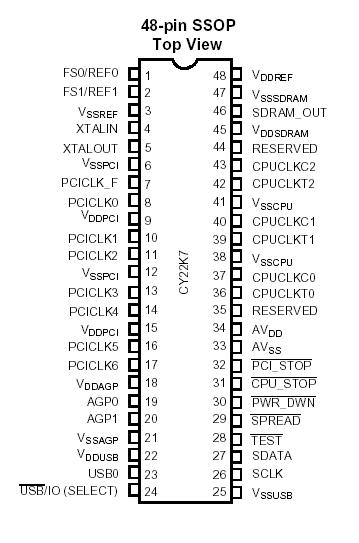

Pinout

Connection Diagram


Specifications

Supply Voltage ...................................................................................................... 0.5 to +4.0V
Input Voltage .................................................................................................. 0.5V to VDD+0.5
Storage Temperature (Non-Condensing) ........................................................ 65°C to +150°C
Max. Soldering Temperature (10 sec) ..............................................................................+260°C
Junction Temperature ..................................................................................................... +150°C
Package Power Dissipation .................................................................................................0.7W
Static Discharge Voltage(per MIL-STD-883, Method 3015) ..............................................>2000V
