CY2287

Features: • Mixed 2.5V and 3.3V Operation• Multiple output clocks at different frequencies-Three CPU clocks at 2.5V, up to 100 MHz-Nine 3.3V SDRAM clocks at 100 MHz-Eight synchronous PCI clocks at 33 MHz-Two synchronous APIC clocks at 16.67 MHz or 33MHz-Two 3V66 clocks at 66 MHz-Two US...

product image

CY2287 Picture
See larger image
SeekIC No. : 004319137 Detail

CY2287: Features: • Mixed 2.5V and 3.3V Operation• Multiple output clocks at different frequencies-Three CPU clocks at 2.5V, up to 100 MHz-Nine 3.3V SDRAM clocks at 100 MHz-Eight synchronous PCI...

CY2287 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY2287
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Mixed 2.5V and 3.3V Operation
• Multiple output clocks at different frequencies
-Three CPU clocks at 2.5V, up to 100 MHz
-Nine 3.3V SDRAM clocks at 100 MHz
-Eight synchronous PCI clocks at 33 MHz
-Two synchronous APIC clocks at 16.67 MHz or 33MHz
-Two 3V66 clocks at 66 MHz
-Two USB clocks at 48 MHz
-One reference clock at 14.318 MHz
• Spread Spectrum clocking
-31 kHz modulation frequency
-EPROM programmable percentage of spreading
-Default is 0.6%, which is recommended by Intel®
-Additional options of 0.25% and 0.4% available
• Power-down features
• I2C™ Interface
• Low skew and low jitter outputs
• Test Mode
• 56-pin SSOP package

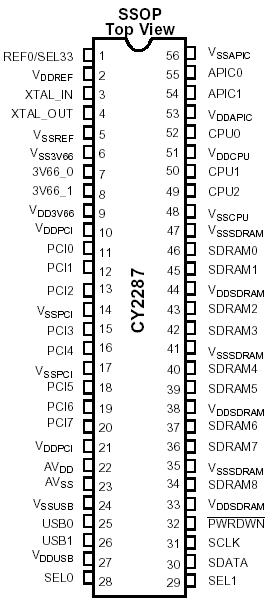

Pinout

Connection Diagram


Specifications

Supply Voltage ...................................................................0.5 to +7.0V
Input Voltage .............................................................. 0.5V to VDD+0.5
Storage Temperature (Non-Condensing) .....................65°C to +150°C
Max. Soldering Temperature (10 sec) ..........................................+260°C
Junction Temperature ..................................................................+150°C
Package Power Dissipation .................................................................1W
Static Discharge Voltage(per MIL-STD-883, Method 3015) ..........>2000V
