CY22392

Features: • Three integrated phase-locked loops• Ultra Wide Divide Counters (8-bit Q, 11-bit P, and 7-bit Post Divide)• Improved Linear Crystal Load capacitors• Flash programmability• Field programmable• Low-jitter, high-accuracy outputs• Power-management ...

product image

CY22392 Picture
See larger image
SeekIC No. : 004319115 Detail

CY22392: Features: • Three integrated phase-locked loops• Ultra Wide Divide Counters (8-bit Q, 11-bit P, and 7-bit Post Divide)• Improved Linear Crystal Load capacitors• Flash program...

CY22392 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY22392
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Three integrated phase-locked loops
• Ultra Wide Divide Counters (8-bit Q, 11-bit P, and 7-bit Post Divide)
• Improved Linear Crystal Load capacitors
• Flash programmability
• Field programmable
• Low-jitter, high-accuracy outputs
• Power-management options (Shutdown, OE, Suspend)
• Configurable Crystal drive strength
• Frequency Select via 3 external LVTTL Inputs
• 3.3V operation
• 16-pin TSSOP packages
• CyClocksRT™ Support

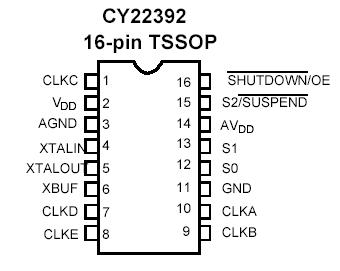

Pinout

Connection Diagram


Specifications

Supply Voltage ...............................................0.5V to +7.0V
DC Input Voltage ............................0.5V to + (AVDD + 0.5V)
Storage Temperature ................................. 65°C to +125°C
Junction Temperature...................................................125°C
Data Retention @ Tj = 125°C.................................>10 years
Maximum Programming Cycles .......................................100
Package Power Dissipation...................................... 350 mW
Static Discharge Voltage
(per MIL-STD-883, Method 3015) ..........................................2000V
Latch up (per JEDEC 17) .................................... ±200 mA
