Product Details

Description



Features:

• Three integrated phase-locked loops
• Ultra-wide divide counters (eight-bit Q, eleven-bit P, and seven-bit post divide)
• Improved linear crystal load capacitors
• Flash programmability
• Field programmability
• Low-jitter, high-accuracy outputs
• Power-management options (Shutdown, OE, Suspend)
• Configurable crystal drive strength
• Frequency select option via external LVTTL Input
• 3.3V operation
• Eight-pin SOIC package
• CyClocks RTTM support

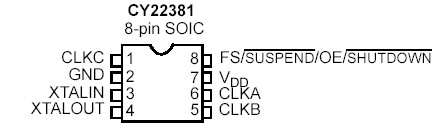

Pinout

Connection Diagram


Specifications

Supply Voltage ............................................... 0.5V to +7.0V
DC Input Voltage.............................. 0.5V to + (VDD + 0.5V)
Storage Temperature ..................................65 to +125
Junction Temperature.................................................. 125
Data Retention @ Tj = 125................................> 10 years
Maximum Programming Cycles........................................100
Package Power Dissipation...................................... 250 mW
Static Discharge Voltage
(per MIL-STD-883, Method 3015) ........................... 2000V
Latch up (per JEDEC 17) .................................... ±200 mA
