CY2220

Features: • Compliant to Intel® CK00 Clock Synthesizer/Driver Specifications• Multiple output clocks at different frequencies-Four pairs of differential CPU outputs, up to 133 MHz-Ten synchronous PCI clocks-Two Memory Reference clocks, 180 degrees out of phase-Four AGP and Hub Link...

product image

CY2220 Picture
See larger image
SeekIC No. : 004319113 Detail

CY2220: Features: • Compliant to Intel® CK00 Clock Synthesizer/Driver Specifications• Multiple output clocks at different frequencies-Four pairs of differential CPU outputs, up to 133 MHz-Te...

CY2220 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY2220
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compliant to Intel® CK00 Clock Synthesizer/Driver Specifications
• Multiple output clocks at different frequencies
-Four pairs of differential CPU outputs, up to 133 MHz
-Ten synchronous PCI clocks
-Two Memory Reference clocks, 180 degrees out of phase
-Four AGP and Hub Link clocks at 66 MHz
-Two 48-MHz clocks
-Two reference clocks at 14.318 MHz
• Spread Spectrum clocking
-31 kHz modulation frequency
-Default is 0.6%, which is recommended by Intel
• Power-down features
• Three Select inputs
• Low-skew and low-jitter outputs
• OE and Test Mode support
• 56-pin SSOP package

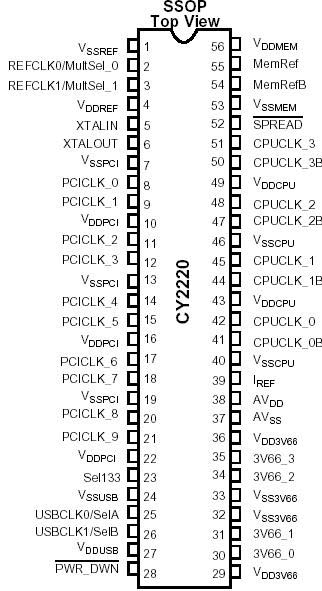

Pinout

Connection Diagram


Specifications

Supply Voltage.................................................................................0.5 to +7.0V
Input Voltage...........................................................................0.5V to VDD + 0.5
Storage Temperature (Non-Condensing)...................................65°C to +150°C
Junction Temperature................................................................................+150°C
Package Power Dissipation...............................................................................1W
Static Discharge Voltage (per JEDEC EIA/JESD22-A114-A)...........................2000V
