Product Details

Description



Features:

• Mixed 2.5V and 3.3V Operation
• Multiple output clocks at different frequencies
-Three CPU clocks, up to 133 MHz
-Ten synchronous PCI clocks, 1 free-running
-One CPU/2 clock, at one-half the CPU frequency
-Three 66 MHz clocks
-One synchronous IOAPIC clock, at 16.67 MHz
-One 48 MHz clock
-Two reference clocks at 14.318 MHz
• Spread Spectrum clocking
-31 kHz modulation frequency
-EPROM programmable percentage of spreading. Default is 0.5%, which is recommended by Intel®.
• Power-down features
• Three Select inputs
• Low skew and low jitter outputs
• OE and Test Mode support
• 48-pin SSOP package

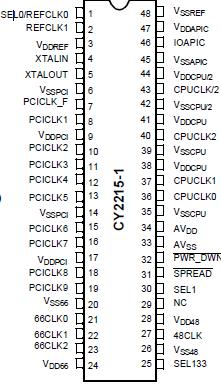

Pinout

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines,
not tested.)
Supply Voltage ................................................0.5 to +7.0V
Input Voltage ........................................... 0.5V to VDD+0.5
Storage Temperature (Non-Condensing) ... 65 to +150
Max. Soldering Temperature (10 sec) ....................... +260
Junction Temperature ............................................... +150
Package Power Dissipation ..............................................1W
Static Discharge Voltage
(per MIL-STD-883, Method 3015) ............................. >2000V
