CXSH-4

PinoutSpecificationsPeak Repetitive Reverse Voltage VRRM40 VDC Blocking Voltage VR 40 VRMS Reverse Voltage VR(RMS) 28 VAverage Forward Current IO 1.0 APeak Forward Surge Current (8.3ms, Non-Rep.) IFSM 10 AOperating and StorageJunction Temperature TJ,Tstg -65 to +150 °CDescriptionThe CENTRAL SEMICO...

product image

CXSH-4 Picture
See larger image
SeekIC No. : 004319072 Detail

CXSH-4: PinoutSpecificationsPeak Repetitive Reverse Voltage VRRM40 VDC Blocking Voltage VR 40 VRMS Reverse Voltage VR(RMS) 28 VAverage Forward Current IO 1.0 APeak Forward Surge Current (8.3ms, Non-Rep.) IF...

CXSH-4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXSH-4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

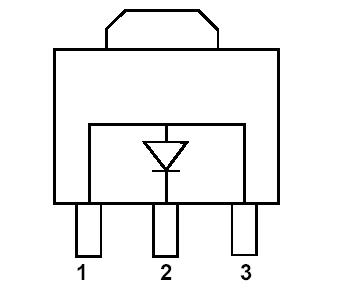

Connection Diagram


Specifications

Peak Repetitive Reverse Voltage VRRM 40 V
DC Blocking Voltage VR 40 V
RMS Reverse Voltage VR(RMS) 28 V
Average Forward Current IO 1.0 A
Peak Forward Surge Current (8.3ms, Non-Rep.) IFSM 10 A
Operating and Storage
Junction Temperature TJ,Tstg -65 to +150 °C


Description

The  CENTRAL SEMICONDUCTOR  CXSH-4 type is a Schottky barrier rectifier mounted in an epoxy molded case using a metal to silicon junction to yield low forward voltage drop.  This device  utilizes  a  single  chip  with  anode connections made to PIN 1 and PIN 3.
