Features: • An efficient instruction set as a controller
- Direct addressing, numerous abbreviated forms, multiplication and division instructions
• Instruction sets for C language and RTOS
- Highly quadratic instruction system, general-purpose register of 16-bit ´ 8-pin ´ 16-bank configuration
• Minimum instruction cycle time :100ns at 20MHz operation
• Incorporated ROM capacity :192K bytes
• Incorporated RAM capacity: 6144 bytes
• Peripheral functions
- A/D converter :8-bit 12-channel successive approximation system, automatic scanning function, 8-stage (soft) + 4-stage (hard) FIFO for conversion results (Conversion time: 20s at 20MHz)
- Serial interface: Buffer RAM (128 bytes, supports high-speed transfer mode), 3 channels
- Timers: 8-bit timer/counter + 8-bit timer (with timing output), 1 channel 16-bit capture timer/counter (with timing output), 1 channel 16-bit timer, 4 channels
- High-precision timing pattern generator: PPG for 27 pins, 42 stages (max.) PPG for 16 pins, 16 stages (max.) RTG for 5 pins, 3 channels
- PWM/DA gate output :PWM for 14 bits, 2 channels (Repetitive frequency of 39.1kHz, 20MHz) DA gate pulse for 14 bits, 2 channels
- Servo input control :Capstan FG, drum FG/PG, reel FG
- VSYNC separator
- FRC capture unit :24-bit and 8-stage FIFO
- PWM output :14 bits, 2 channels
- General-purpose prescaler :10 bits, 1 channel
- Pulse cycle measurement circuit :1 channel with mask input
• General-purpose I/O: 80 pins: (max.; when all multi-purpose pins are used as general-purpose I/O.)
• Interruption 28 factors, 28 vectors, multi-interruption and priority selection
possible
• Standby mode :Sleep/stop
• Package :100-pin plastic LQFP
• Piggy/evaluation chip :CXP913000 100-pin ceramic LQFP

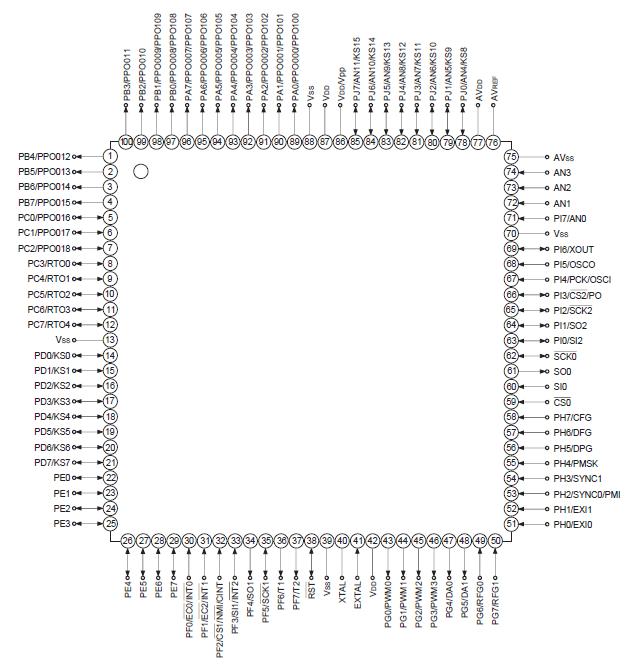

Pinout
Specifications
| Item |
Symbol |
Rating |
Unit |
Remarks |
|
Supply voltage
|
VDD |
0.3 to +7.0 |
V |
|
| AVDD |
AVss to +7.0*1 |
V |
|
| AVSS |
0.3 to +0.3 |
V |
|
Input voltage
|
VIN |
0.3 to +7.0*2 |
V |
|
| Output voltage |
VOUT |
0.3 to +7.0*2 |
V |
|
| High level output current |
IOH
|
-5 |
mA |
|
| High level total output current |
IOH |
-50 |
mA |
Total for all output pins |
| Low level output current |
IOL |
15 |
mA |
All pins excluding large current output pins |
| CIOL |
20 |
mA |
Large current output pins*3 |
| Low level total output current |
IOL |
130 |
mA |
Total for all output pins |
| Operating temperature |
Topr |
20 to +75 |
°C |
|
| Storage temperature |
Tstg |
55 to +150 |
°C |
|
| Allowable power dissipation |
PD |
380 |
mW |
|
| |
| |
Descriptionintegrating on a single chip an A/D converter CXP913P048, serial interface with an incorporated buffer RAM, highprecision timing pattern generation function, pulse cycle measurement circuit, PWM generator, generalpurpose prescaler, vertical sync separation circuit, and a measurement circuit which measures the signals of capstan FG, drum FG/PG, reel FG and other servo systems with high precision, as well as basic configurations like a 16-bit CPU, ROM, RAM, and I/O port.
This LSI also provides sleep/stop modes that enable lower power consumption.
The CXP913P048 is the PROM-incorporated version of the CXP913040 with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
CXP913P048 Data Sheet
