CXP88224

Features:

• A wide instruction set (213 instructions) which cover various types of data
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 250ns/16MHz, During operation 122µs/32kHz
• Incorporated ROM capacity 16Kbytes (CXP88216), 20Kbytes (CXP88220), 24Kbytes (CXP88224)
• Incorporated RAM capacity 880bytes
• Peripheral function
- A/D converter 8-bit, 8-channel, successive approximation system (Conversion time: 20.0µs/16MHz)
- Serial I/O with auto transfer mode Incorporated 8-stage FIFO for data (1 to 8 bytes auto transfer)
- Timer 8-bit timer/counter, 2-channel, 19-bit time base timer
- High precision timing pattern generation circuit PPG 8 pins 32-stage programmable circuit, RTG 5 pins 2-channel
- PWM/DA gate output 12-bit, 2-channel (Repetitive frequency 62.5kHz/16MHz)
- Servo input control Capstan FG, Drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output for tuner 14-bit
- VISS/VASS circuit Pulse duty auto detection circuit
- 32kHz timer/event counter 32kHz oscillation circuit, ultra-low speed instruction mode
- Remote control receiving circuit 8-bit pulse measuring counter, 6-stage FIFO
- FDP controller/driver Max.148 segments can be displayed Hardware key scanning function (Max.16 ´ 3 key matrix available)
- Tri-state output PPG 1 pin, RTG 1 pin, output 8 pins
- Pseudo HSYNC output function
- High speed head switching circuit
• Interruption 22 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP

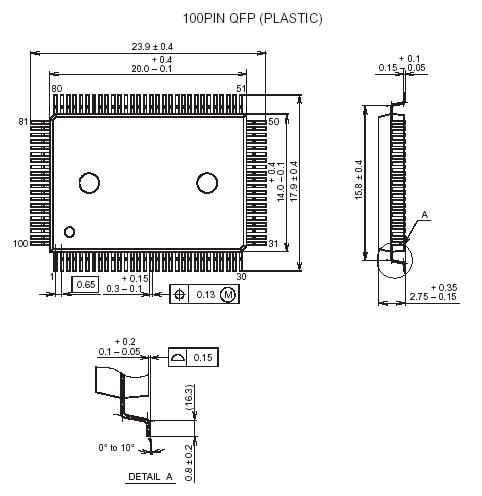

• Package 100-pin plastic QFP
• Piggyback/evaluation chip CXP88100

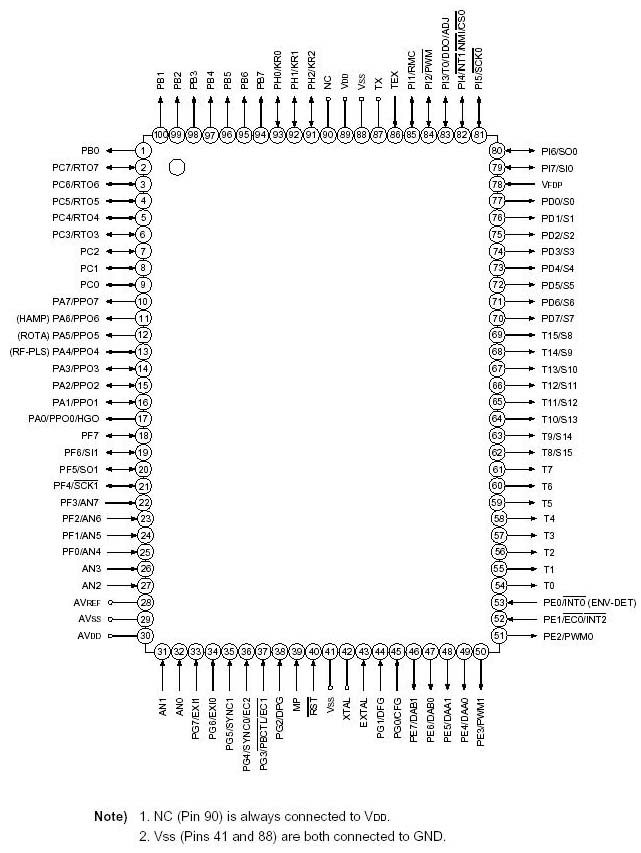

Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	AVDD	AVss to +7.0*1	V
	AVSS	0.3 to +0.3	V
Input voltage	VIN	0.3 to +7.0*2	V
Output voltage	VOUT	0.3 to +7.0*2	V
Display output voltage	VOUTP	VDD 40 to VDD + 0.3	V	As P-channel transistor is open drain, VDD is reference.
High level output current	IOH	5	mA	All pins excluding display outputs (value per pin)*3
	IODH1	15	mA	Display outputs S0 to S7 (value per pin)
	IODH2	35	mA	Display outputs T0 to T7, and T8/S15 to T15/S8 (value per pin)
High level total output current	IOH	50	mA	Total for all pins excluding display outputs
	IODH	100	mA	Total of all output pins
Low level output current	IOL	15	mA
Low level total output current	IOL	130	mA	Total for all outputs
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW	QFP

Description

The CXP88224 is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, vector interruption, high precision timing pattern generation circuits, PWM generator, PWM for tuner, VISS/VASS circuit, 32kHz timer/event counter, remote control receiving circuit, FDP controller/driver, VCR vertical sync separation circuit and the measuring circuit which measure signals of capstan FG and drum FG/PG and other servo systems, as well as basic configurations like 8-bit CPU, ROM, RAM and I/O port. They are integrated into a single chip.

Also, CXP88224 provides sleep/stop function which enables to lower power consumption and ultra-low speed instruction mode in 32kHz operation.
