CXP87852

Features:

• A wide instruction set (213 instructions) which covers various types of data
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5V to 5.5V) 122µs at 32kHz operation (2.7V to 5.5V)
• Incorporated ROM capacity 52K bytes (CXP87852), 60K bytes (CXP87860)
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
- A/D converter 8 bits, 12 channels, successive approximation system (Conversion time of 20.0µs at 16MHz)
- Serial Interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel Incorporated two-wire 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,32kHz timer/counter
- High precision timing pattern generator PPG: maximum of 19 pins, 32 stages programmable RTG: 5 pins, 2 channels
- PWM/DA gate output PWM: 12 bits, 2 channels (Repetitive frequency of 62kHz at 16MHz) DA gate pulse output: 13 bits, 4 channels
- Servo input control Capstan FG, drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14 bits
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control reception circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
- HSYNC counter 12-bit event counter (Counts SYNC1 input.)
• Interruption 23 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP
• Piggyback/evaluator CXP87800 100-pin ceramic PQFP

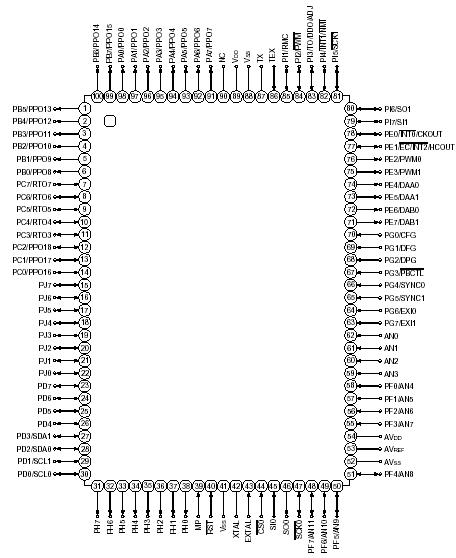

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	AVDD	AVss to +7.0*1	V
	AVSS	0.3 to +0.3	V
Input voltage	VIN	0.3 to +7.0*2	V
Output voltage	VOUT	0.3 to +7.0*2	V
Medium withstand output voltage	VOUTP	0.3 to +15.0	mA	PH pin
High level output current	IOH	5	mA
High level total output current	IOH	50	mA	Total of entire output pins
Low level output current	IOL	15	mA	Other than large current output pins : per pin
	IOLC	20	mA	Large current output pin*3: per pin
Low level total output current	IOL	130	°C	Total of output pins
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150
Allowable power dissipation	PD	600	mW	QFP package type
		380		LQFP package type

Description

The CXP87852/87860 is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, high precision timing
pattern generation circuit, PWM output, VISS/VASS circuit, 32kHz timer/counter, remote control reception circuit, HSYNC counter, VSYNC separator and the measurement circuit which measures signals of capstan FG and drum FG/PG and other servo systems, as well as basic configurations like 8-bit CPU, ROM, RAM and I/O port. They are integrated into a single chip.
Also the CXP87852/87860 provides sleep/stop unctions which enable to lower power consumption.
