CXP87740A

Features:

• A wide instruction set (213 instructions) which cover various types of data
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 333ns/12MHz (Supply voltage 3.0 to 5.5V) During operation 250ns/16MHz (Supply voltage 4.5 to 5.5V) During operation 122µs/32kHz
• Incorporated ROM capacity 40K bytes (CXP87740A) 48K bytes (CXP87748A)
• Incorporated RAM capacity 1344 bytes
• Peripheral functions
- A/D converter 8-bit, 12-channel, successive approximation system (Conversion time 20.0µs/16MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO, 1-channel (1 to 8 bytes auto transfer) 8-bit serial I/O, 1-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer, 32kHz timer/counter
- High precision timing pattern generator PPG 19 pins 32-stage programmable RTG 5-pins 2-channel
- PWM/DA gate output 12-bit, 2-channel (Repetitive frequency 62kHz/16MHz)
- Servo input control Capstan FG, Drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14-bit, 1-channel
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control receiving circuit 8-bit pulse measuring counter, 6-stage FIFO
• Interruption 21 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin plastic QFP/LQFP
• Piggyback/evaluation chip CXP87700 100-pin ceramic QFP/LQFP

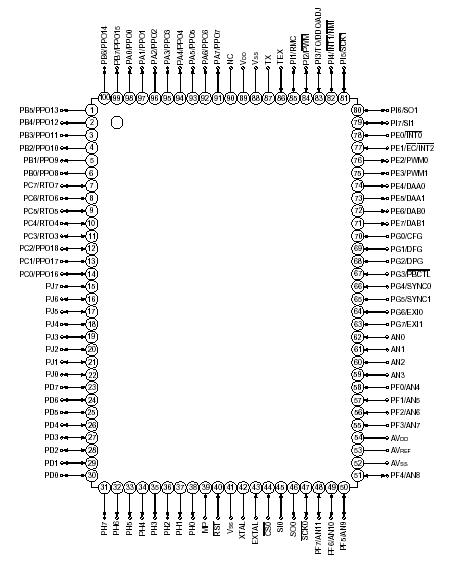

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	AVDD	AVss to +7.0*1	V	PROM version only
	AVSS	0.3 to +0.3	V
Input voltage	VIN	0.3 to +7.0*2	V
Output voltage	VOUT	0.3 to +7.0*2	V
Medium withstand output voltage	VOUTP	0.3 to +15.0	mA	PH pin
High level output current	IOH	5	mA
High level total output current	IOH	50	mA	Total of entire output pins
Low level output current	IOL	15	mA	Other than large current output pins : per pin
	IOLC	20	mA	Large current output pin*3: per pin
Low level total output current	IOL	130	°C	Total of output pins
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150
Allowable power dissipation	PD	600	mW	QFP package type
		380		LQFP package type

Description

The CXP87740A/87748A is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, vector interruption, high precision timing pattern generation circuit, PWM generator, PWM for tuner, VISS/VASS circuit, 32kHz timer/event counter, remote control receiving circuit, VCR vertical sync separation circuit and the measuring circuit which measure signals of capstan FG and drum FG/PG and other servo systems, as well as basic configurations like 8-bit CPU, ROM, RAM and I/O port. They are integrated into a single chip.
Also CXP87740A/87748A provides sleep/stop function which enables to lower power consumption and ultra-low speed instruction mode in 32kHz operation.
