CXP87500

Features: • A wide instruction set (213 instructions) which covers various types of data 16-bit operation/multiplication and division/boolean bit operation instructions• Minimum instruction cycle 326ns at 12.288MHz operation• Applicable EPROM LCC type 27C512(Maximum 40Kbytes are ...

product image

CXP87500 Picture
See larger image
SeekIC No. : 004319016 Detail

CXP87500: Features: • A wide instruction set (213 instructions) which covers various types of data 16-bit operation/multiplication and division/boolean bit operation instructions• Minimum instruct...

CXP87500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXP87500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• A wide instruction set (213 instructions) which covers various types of data
16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 326ns at 12.288MHz operation
• Applicable EPROM LCC type 27C512(Maximum 40Kbytes are available)
• Incorporated RAM capacity 1344bytes
• Peripheral functions
Arithmetic coprocessor Signed multiplication and division, signed sum of products. high speed execution of many bits shift rotation operation
A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 13µs/12.288MHz) Incorporated 3-stage FIFO for A/D conversion data
Serial interface Incorporated buffer RAM (auto transfer for 1 to 128bytes), 2-channel
Timer 8-bit timer 8-bit timer/counter 19-bit time base timer
High precision timing pattern generator PPG 11-pin, 32-stage programmable
PWM output 12-bit, 2-channel (repetitive frequency 48kHz) 8-bit, 3-channel (repetitive frequency 48kHz)
Servo input control Capstan FG, drum FG/PG, reel FG input
FRC capture unit Incorporated 28-bit and 8-stage FIFO
• Interruption 12 factors, 12 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin ceramic PQFP


Pinout

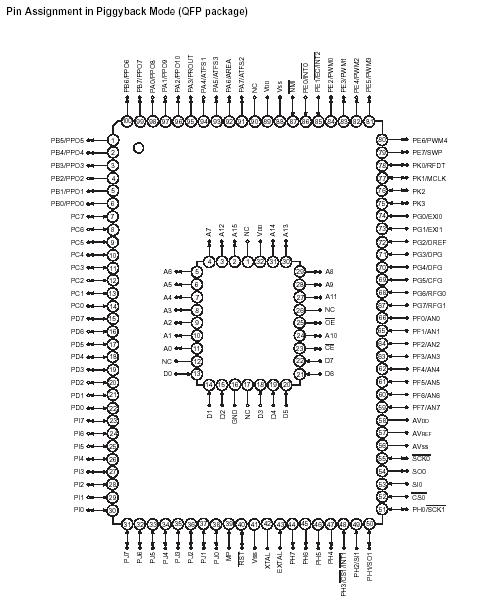

Connection Diagram


Description

The CXP87500 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP87532/87540.
