CXP86608

Features:

• A wide instruction set (213 instructions) which covers various types of data
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation 122µs at 32kHz operation
• Incorporated ROM 8K bytes (CXP86608) 12K bytes (CXP86612) 16K bytes (CXP86616)
• Incorporated RAM 352 bytes
• Peripheral functions
- A/D converter 8 bits, 6 channels, successive approximation method (Conversion time of 3.25µs at 16MHz)
- Serial interface 8-bit clock sync type, 1 channel
- Timer 8-bit timer 8-bit timer/counter 19-bit time-base timer 32kHz timer/counter
- I2C bus interface
- PWM output 8 bits, 4 channels
- Remote control reception circuit 8-bit pulse measurement counter, 6-stage FIFO
- Watchdog timer
• Interruption 11 factors, 11 vectors, multi-interruption possible
• Standby mode Sleep
• Package 64-pin plastic SDIP/QFP
• Piggyback/evaluator CXP86400 64-pin ceramic PQFP CXP86490 64-pin ceramic PSDIP

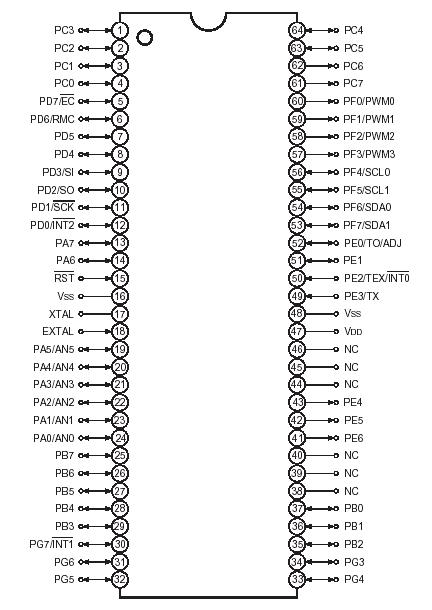

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
Mid-voltage drive output voltage	VOUTP	0.3 to +15.0	V
High level output current	IOH	5	mA
High level total output current	IOH	50	mA	Total of all output pins
Low level output current	IOL	15	mA	Ports excluding large current output (value per pin)
	IOLC	20	mA	Large current output ports (value per pin*2)
Low level total output current	IOL	130	mA	Total for all outputs
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	1000	mW	SDIP-64P-01
		600	mW	QFP-64P-L01

Description

The CXP86608/86612/86616 are the CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, I2C bus interface, PWM output, remote control reception circuit, watchdog timer, 32kHz timer/counter besides the basic configurations of 8-bit CPU, ROM, RAM, I/O ports.
The CXP86608/86612/86616 also provide a sleep function that enables to lower the power consumption.
