Features:

• A wide instruction set (213 instructions) which covers various types of data
16-bit operation/multiplication and division/ Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation 122µs at 32kHz operation
• Applicable EPROM LCC type 27C512 (Maximum 60K bytes are available.)
• Incorporated RAM 1536 bytes (Excludes VRAM for on-screen display and sprite RAM)
• EPROM for custom font (CXP86490 only) LCC27C512 (Maximum 12K bytes are available.)
• Peripheral functions
A/D converter 8 bits, 6 channels, successive approximation method (Conversion time of 1.6µs at 16MHz)
Serial interface 8-bit clock sync type, 1 channel
Timer 8-bit timer 8-bit timer/counter 19-bit time base timer 32kHz timer/ counter
On-screen display (OSD) 12 *16 dots, 384 character types, 15 character colors, 24 characters *2 lines frame background 8 colors/half blanking background on full screen 15 colors/half blanking edging/shadowing/rounding for every line background with shadow for every character/ double scanning sprite OSD; 12 *16 dots, 1 screen, 8 colors for every dot
I2C bus interface
PWM output 8 bits, 8 channels 14 bits, 1 channel
Remote control reception circuit 8-bit pulse measurement counter, 6-stage FIFO
HSYNC counter
Watchdog timer
• Interruption 13 factors, 13 vectors, multi-interruption possible
• Standby mode SLEEP
• Package CXP86400 64-pin ceramic PQFP CXP86490 64-pin ceramic PSDIP (Supports custom font)


Pinout

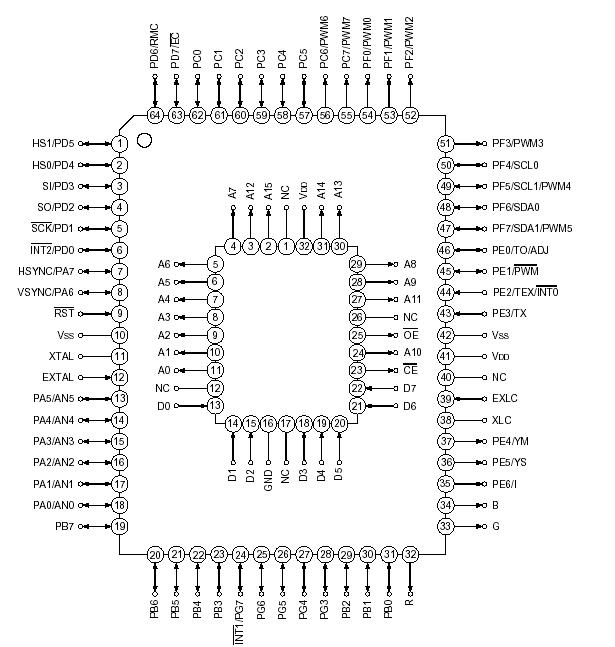

Connection Diagram


Description

The CXP86400/86490 are CMOS 8-bit single chip microcomputers that serve as both piggyback and evaluator. The CXP86400/86490 are developed for evaluating the function of the CXP86440/86448/86460.
Note that the CXP86400 corresponds to the fixed font and the CXP86490 corresponds to the custom font respectively.
