Features:

• Instruction set which supports a wide array of data types-213 types of instructions which include 16-bit calculations, multiplication and division arithmetic, and boolean operations.
• Minimum instruction cycle 0.5µs/8MHz
• On-chip PROM 60K bytes (For program) 10K bytes (For OSD)
• On-chip RAM 960 bytes
• On-screen display function 12×18 dots, 384 types, 12lines of 32 characters Black frame output, half blanking, shadow, background color on full screen Double scanning mode supported includes jitter elimination circuit
• I2C bus interface
• 14-bit PWM output, 8-bit PWM output (8 channels)
• Remote control receiver circuit
• 8-bit A/D converter (4 channels, 20µs conversion time/4MHz, 8MHz)
• HSYNC counter (2channels)
• Watchdog timer
• 8-bit synchronized serial I/O
• 8-bit timer, 8-bit timer/counter, 19-bit time-base timer
• General purpose input/output 32-line I/O (bit-selectable input/output), also 6-line input, 10-line output (internal 8-line Nch-O/D)
• Interrupts 13 factors, 13 vectors, multiple interrupt possible
• Standby mode SLEEP
• Package 64-pin plastic SDIP/QFP



Pinout

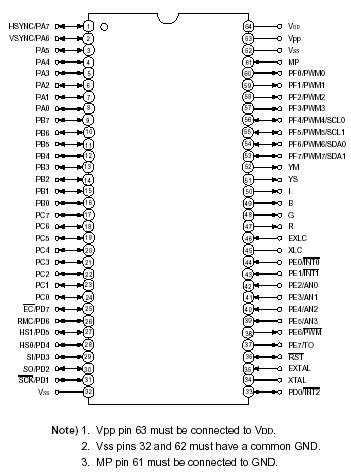

  Connection Diagram




Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
Vpp 0.3 to +13.0 V Incorporated PROM
Input voltage VIN 0.3 to +7.0*1 V
Output voltage VOUT 0.3 to +7.0*1 V
Medium voltage tolerance output voltage VOUTP 0.3 to +15.0 V Pins PF0 to PF3
High level output current IOH 5 mA
High level total output current IOH 50 mA Total for all output pins
Low level output current IOL 15 mA General purpose port 1 pins*2
IOLC 20 mA High current port 1 pins*3
Low level total output current IOL 130 mA Total for all output pins
Operating temperature Topr

10 to +75

°C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 1000 mW SDIP
600 QFP



Description

The CXP854P60 are a highly integrated microcomputers composed of a 8-bit CPU, PROM, RAM, and I/O ports. These chips feature many other highperformance circuits in a single-chip CMOS design, including an A/D converter, serial interface, timer/counter, time-base timer, vector interrupt, onscreen display function, I2C bus interface, PWM generator, remote control receiver, HSYNC counter, and watchdog timer.
Also, the CXP854P60 provides power-on reset and sleep functions. The designers have ensured low power consumption for these powerful microcomputers.
Incorporating a one-time PROM, the CXP854P60 has an equivalent function to the CXP85460 and character ROM for OSD can be written. Therefore, it is suitable for evaluation in system development and for the production of small amounts.
