Product Details

Description



Features:

• Instruction set which supports a wide array of data types
- 213 types of instructions which include 16-bit calculations, multiplication and division arithmetic,and boolean bit operations.
• Minimum instruction cycle 1µs/4MHz
• EPROM 27C256 LCC type 27C256
• Incorporated RAM capacity 448 bytes
• EPROM for custom font (CXP85290A only) LCC type 27C256 (used volume is 4K bytes)
• Peripheral functions
- On-screen display function 12*16 dots, 128 types, 8 colors, 21 characters *4 lines (More than 5 lines possible) Double scanning mode, jitter elimination circuit
- I2C bus interface
- PWM output 14 bits, 1 channel 6 bits, 8 channels
- Remote control receiving circuit 8-bit pulse measurement counter, 6-stage FIFO
- A/D converter 4 bits, 4 channels, successive approximation system (conversion time of 40µs/4MHz)
- HSYNC counter
- Power supply frequency counter
- Watchdog timer
- Serial I/O 8-bit clock synchronized
- Timers 8-bit timer, 8-bit timer/counter, 19-bit time-base timer
• Interrupts 14 factors, 14 vectors multi-interruption possible
• Standby mode Sleep
• Package 64-pin ceramic SDIP/QFP


Pinout

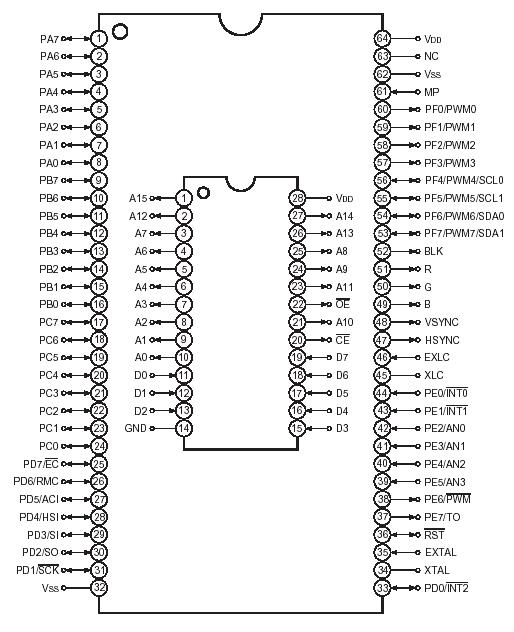

Connection Diagram


Description

The CXP85290A are CMOS 8-bit 1-chip microcomputers that serve as both piggyback and evaluator. The CXP85200A/85290A is developed for evaluating the function of the CXP85112B/85116B/85220A/85224A/85228A/85232A. Note that CXP85200A corresponds to the fixed font, and CXP85290A corresponds to the custom font respectively.
