Features:

• A wide instruction set (213 instructions) which covers various types of data
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 143ns at 28MHz operation (4.5 to 5.5V)
• Incorporated flash EEPROM 60K bytes Rewrite time 100 times
• Incorporated RAM 1472 bytes
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 1.93µs at 28MHz)
- Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes,latch output function, MSB/LSB first selectable), 1 channel 8-bit clock sync type, 1 channel
- Timer 8-bit timer 8-bit timer/counter 19-bit time-base timer 16-bit capture time/counter
- PWM output 8 bits, 2 channels
• Interruption 14 factors, 14 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin plastic QFP



Pinout

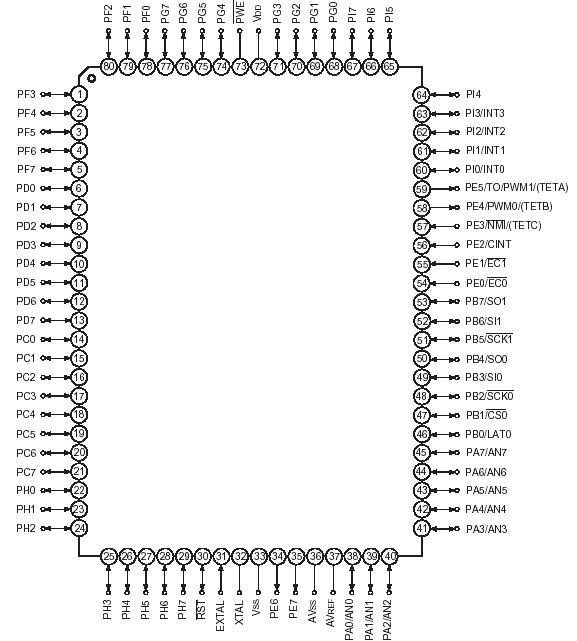

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
AVSS 0.3 to +0.3 V
Input voltage VIN 0.3 to +7.0*1 V
Output voltage VOUT 0.3 to +7.0*1 V
High level output current IOH 5 mA Output (value per pin)
High level total output current IOH 50 mA Total of all output pins
Low level output current IOL 15 mA Pins excluding large current outputs
(value per pin)
IOLC 20 mA Large current output ports
(value per pin*2)
Low level total output current IOL 130 mA Total for all outputs
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW



Description

The CXP845F60 is a CMOS 8-bit microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, capture timer/counter, PWM output and the like besides the basic configurations of 8-bit CPU, flash EEPROM,RAM and I/O port.
The CXP845F60 also provides a sleep/stop functions that enable to execute the power-on reset function or lower the power consumption.
The CXP845F60 is the flash EEPROM-incorporated version of the CXP84540/84548 with a built-in mask ROM. This enables program writing and erasing.Thus, it is most suitable for evaluation use during system development and for small-quantity production.
