CXP84500

Features: • A wide instruction set (213 instructions) which covers verious types of data. 16-bit operation/multiplication and division/Boolean bit operation instructions• Minimum instruction cycle 143ns at 28MHz operation (4.5 to 5.5V) 200ns at 20MHz (3.0 to 5.5V)• Applicable EPR...

product image

CXP84500 Picture
See larger image
SeekIC No. : 004318941 Detail

CXP84500: Features: • A wide instruction set (213 instructions) which covers verious types of data. 16-bit operation/multiplication and division/Boolean bit operation instructions• Minimum instruc...

CXP84500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXP84500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• A wide instruction set (213 instructions) which covers verious types of data.
16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 143ns at 28MHz operation (4.5 to 5.5V) 200ns at 20MHz (3.0 to 5.5V)
• Applicable EPROM LCC type 27C512 (Maximum 60K bytes are available)
• Incorporated RAM capacity 1472 bytes
• Peripheral functions
A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 1.93µs at 28MHz/4.5 to 5.5V, 2.6µs at 20MHz/3.0 to 5.5V)
Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes,latch output function, MSB/LSB first selectable), 1 channel 8-bit clock sync type, 1 channel
Timer 8-bit timer/counter 19-bit time base timer 16-bit capture timer/counter
PWM output 8 bits, 2 channels
• Interruption 14 factors, 14 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 80-pin ceramic PQFP


Pinout

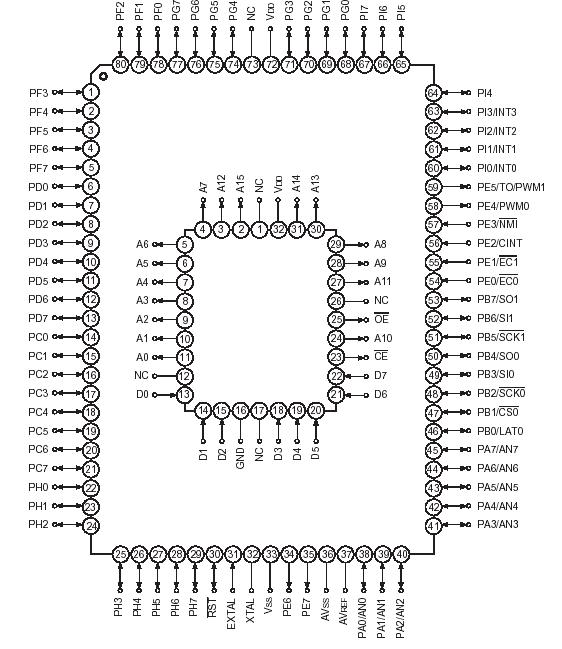

Connection Diagram


Description

The CXP84500 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type,which is developed for evaluating the function of the CXP84540/84548.
