Features:

• Wide-range instruction system (213 instructions) to cover various types of data.
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 122µs at 32kHz operation
• Incorporated ROM capacity 12Kbytes (CXP84412) 16Kbytes (CXP84416)
• Incorporated RAM capacity 448bytes
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 2 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,32kHz timer/counter
- Remote control reception circuit Incorporated 6-stage FIFO 8-bit measurement counter
- PWM output for tuner 14 bits
• Interruption 12 factors, 12 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 80-pin plastic QFP
• Piggyback/evaluation chip CXP84400 80-pin ceramic QFP



Pinout

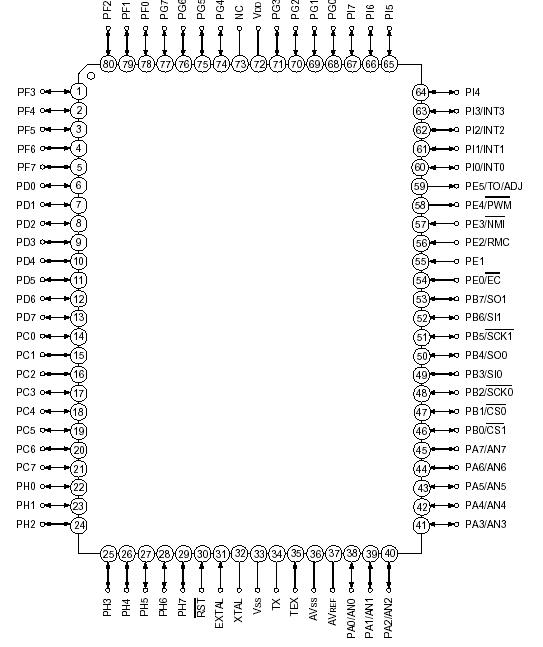

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
AVSS 0.3 to +0.3 V
Input voltage VIN 0.3 to +7.0*1 V
Output voltage VOUT 0.3 to +7.0*1 V
High level output current IOH 5 mA Output per pin
High level total output current IOH 50 mA Total of all output pins
Low level output current IOL 15 mA Value per pin, excluding large current outputs
IOLC 20 mA Value per pin*2 for large current outputs
Low level total output current IOL 130 mA Total for all outputs
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW



Description

The CXP84416 is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, 32kHz timer/counter, remote control reception circuit and other servo systems besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port.
The CXP84416 also provides and a sleep/stop function that enables lower power consumption.
