Product Details

Description



Features:

• A wide instruction set (213 instructions) which cover various types of data.
-16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation
• Applicable EPROM LCC type 27C128, LCC type 27C256 (Maximum 16K bytes are available)
• Incorporated RAM capacity 448bytes
• Peripheral functions
-A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
-Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 circuit 2 channels
-Timer 8-bit timer 8-bit timer/counter 19-bit time base timer 32kHz timer/counter
-Remote control receiving circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
-PWM output 14bits, 1channel
• Interruption 12 factors, 12 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 80-pin ceramic PQFP


Pinout

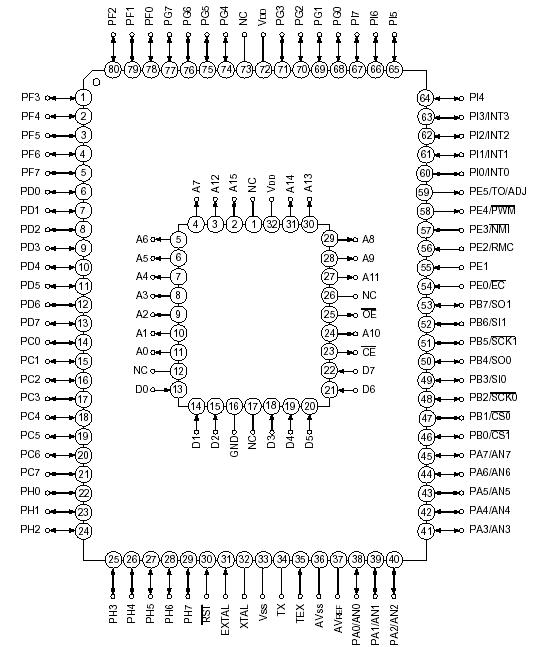

Connection Diagram


Description

The CXP84400 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP84412/84416.
