CXP842P24

Features:

• Wide-range instruction system (213 instructions) to cover various types of data
- 16-bit arithmetic/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation
• Incorporated PROM capacity 24K bytes
• Incorporated RAM capacity 624 bytes
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel 8-bit clock synchronization, 1 channel
- Timer 8-bit timer 8-bit timer/counter 19-bit time base timer 16-bit capture timer/counter
- Remote control reception circuit 8-bit pulse measuring counter, 6-stage FIFO
- PWM output 14 bits, 1 channel
• Interruption 14 factors, 14 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 64-pin plastic SDIP

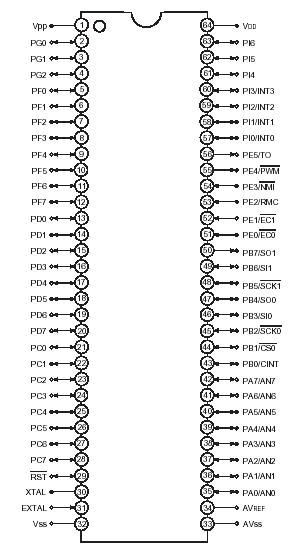

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	VPP	0.3 to +13.0	V	Incorporated PROM
	AVSS	0.3 to +0.3	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
High level output current	IOH	5	mA	Output per pin
High level total output current	IOH	50	mA	Total of all output pins
Low level output current	IOL	15	mA	Value per pin, excluding large current outputs
	IOLC	20	mA	Value per pin*2 for large current outputs
Low level total output current	IOL	130	mA	Total for all outputs
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	1000	mW

Description

The CXP842P24 is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, capture timer/counter, and remote control reception circuit besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port.
The CXP842P24 also provides a power-on reset function and a sleep/stop function that enables lower power consumption.
This IC is the PROM-incorporated version of the CXP84224 with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
