Product Details

Description



Features:

• Wide-range instruction system (213 instructions) to cover various types of data
-16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation
• Incorporated ROM capacity 20K bytes (CXP84220) 24K bytes (CXP84224)
• Incorporated RAM capacity 624 bytes
• Peripheral functions
-A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
-Serial interface SIO with 8-bit, 8-stage FIFO incorporated for data use (Auto transfer for 1 to 8 bytes), 1 channel 8-bit standard SIO, 1 channel
-Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,16-bit capture timer/counter
-Remote control reception circuit Incorporated noise elimination circuit Incorporated 8-bit, 6-stage FIFO for measurement data
-PWM output circuit 14 bits, 1 channel
• Interruption 13 factors, 14 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 64-pin plastic SDIP
• Piggyback/evaluation chip CXP84200 64-pin ceramic SDIP



Pinout

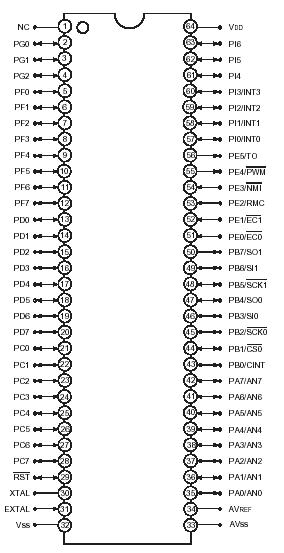

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
AVSS 0.3 to +0.3 V
Input voltage VIN 0.3 to +7.0*1 V
Output voltage VOUT 0.3 to +7.0*1 V
High level output current IOH 5 mA Output per pin
High level total output current IOH 50 mA Total of all output pins
Low level output current IOL 15 mA Value per pin, excluding large current outputs
IOLC 20 mA Value per pin*2 for large current outputs
Low level total output current IOL 130 mA Total for all outputs
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 1000 mW



Description

The CXP84224 is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, capture timer counter, remote control reception circuit besides the basic configurations of 8-bit CPU, ROM, RAM, and l/O port.
The CXP84224 also provides a power-on reset function and a sleep/stop function that enables lower power consumption.
