CXP84124

Features:

• Wide-range instruction system (213 instructions) to cover various types of data
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 122µs at 32kHz operation
• Incorporated ROM capacity 20K bytes (CXP84120) 24K bytes (CXP84124)
• Incorporated RAM capacity 624 bytes
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface SIO with 8-bit, 8-stage FIFO incorporated for data use (Auto transfer for 1 to 8 bytes), 1 channel 8-bit standard SIO, 1 channel
- Timer 8-bit timer 8-bit timer/counter 19-bit time base timer 16-bit capture timer/counter 32kHz timer/counter
- Remote control reception circuit Incorporated noise elimination circuit Incorporated 8-bit, 6-stage FIFO for measurement data
- PWM output 14 bits, 1 channel
• Interruption 14 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin plastic QFP
• Piggyback/evaluation chip CXP84100 80-pin ceramic QFP

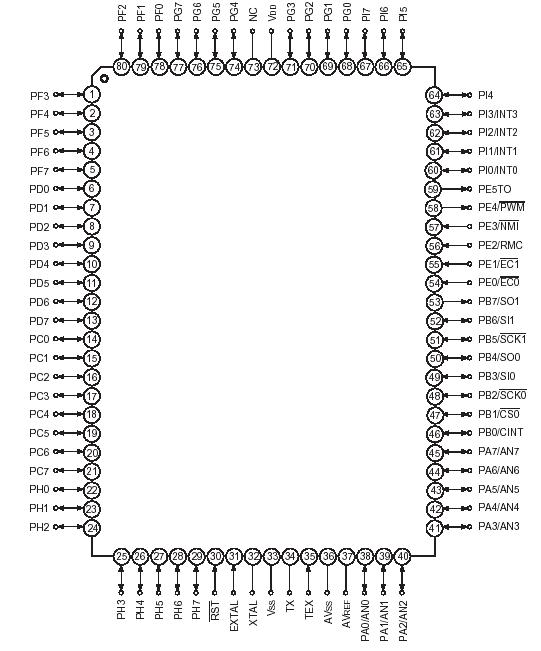

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	AVSS	0.3 to +13.0	V
Input voltage	VIN	0.3 to +7.0*1	V
Mid-voltage drive output voltage	VOUT	0.3 to +7.0*1	V
High level output current	IOH	5	mA	Output per pin
High level total output current	IOH	50	mA	Total of all output pins
Low level output current	IOL	15	mA	Value per pin, excluding large current outputs
	IOLC	20	mA	Value per pin*2 for large current outputs
Low level total output current	IOL	130	mA	Total for all outputs
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW

Description

The CXP84124 is a CMOS 8-bit single chip micro-computer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, capture timer/counter, remote control reception circuit and other servo systems besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port.
The CXP84124 also provides a power-on reset function and a sleep/stop function that enables lower power consumption.
