CXP83621

Features:

• Wide-range instruction system (213 instructions) to cover various types of data.
- 16-bit arithmetic/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation (4.5 to 5.5V) 1µs at 4MHz operation (2.7 to 5.5V) 122µs at 32kHz operation (2.7 to 5.5V)
• Incorporated ROM capacity 20K bytes (CXP83620, 83621) 24K bytes (CXP83624, 83625)
• Incorporated RAM capacity 736 bytes (includes LCD display data area and serial interface RAM)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 12.4µs/10MHz)
- Serial interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel 8-bit clock synchronized type (MSB/LSB first selectable), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time-base timer,Sub timer/counter
- LCD controller/driver Maximum 128 segment display possible (during 1/4 duty) 4 common output, 32 segment output Display method static, 1/2, 1/3, 1/4 duty Bias method 1/2, 1/3 bias
- Remote control reception circuit 8-bit pulse measuring counter, 6-stage FIFO
• Interruption 14 factors, 14 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin plastic QFP/LQFP
• Piggy/evaluation chip CXP83600 (CXP83620, 83624) CXP83601 (CXP83621, 83625)

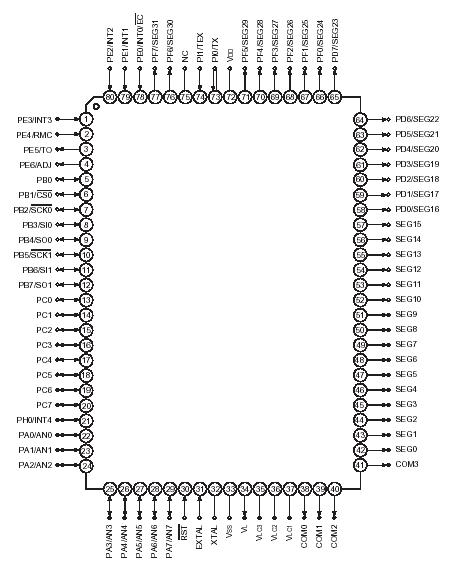

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
LCD bias voltage	VLC1, VLC2, VLC3	0.3 to +7.0*1	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
Mid-voltage drive output voltage	VOUTP	0.3 to +15.0	V
High level output current	IOH	5	mA	Output per pin
High level total output current	IOH	50	mA	Total of all output pins
Low level output current	IOL	15	mA	Value per pin, excluding high current output pins
	IOLC	20	mA	Value per pin for high current output pins*2
Low level total output current	IOL	130	mA	Total for all outputs
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW	QFP-80P-L01
		380		LQFP-80P-L01
		380	mW	QFP-80P-L03

Description

The CXP83620/83624 and the CXP83621/83625 are CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, sub timer/counter, LCD controller/driver and remote control reception circuit besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port.
The CXP83620/83624 and the CXP83621/83625 also provide a sleep/stop function that enables lower power consumption.
