CXP834P17

Features:

• A wide instruction set (213 instructions) which covers various types of data
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation (4.5 to 5.5V) 122µs at 32kHz operation (2.7 to 5.5V)
• Incorporated PROM capacity 16K bytes
• Incorporated RAM capacity 448 bytes (LCD display data area included)
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation system (Conversion time: 32µs/10MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO (1 to 8 bytes auto transfer), 1 circuit 2 channels
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer, 32kHz timer/counter
- LCD controller/driver Maximum 128 segments display possible (During 1/4 duty) 4 common outputs, 32 segment outputs Display method: Static, 1/2, 1/3 and 1/4 duty Bias method: 1/2 and 1/3 bias
- Remote control receiving circuit 8-bit pulse measurement counter 6-stage FIFO
- PWM output 14 bits 1 channel, 8 bits 1 channel
• Interruption 12 factors, 12 vectors, multi-interruption possible
• Standby mode SLEEP/STOP

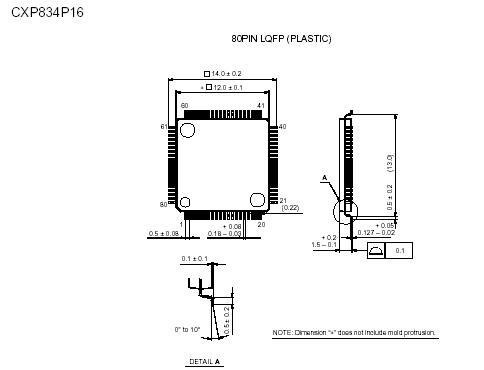

• Package 80-pin plastic QFP/LQFP


Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	Vpp	0.3 to +13.0	V	Incorporated PROM
LCD bias voltage	VLC1, VLC2, VLC3	0.3 to +7.0*1	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
High level output current	IOH	5	mA	Output per pin
High level total output current	IOH	50	mA	Total for all output pins
Low level output current	IOL	15	mA	Value per pin, excluding high current output pins
	IOLC	20	mA	Value per pin for high current output pins*2
Low level total output current	IOL	100	mA	Total for all output pins
Operating temperature	Topr	10 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW	QFP-80P-L01
		380		LQFP-80P-L01
		380		QFP-80P-L03

Description

The CXP834P16 and CXP834P17 are a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, 32kHz timer/counter, LCD controller/driver, remote control receiving circuit and PWM output, as well as basic configurations like 8-bit CPU, PROM, RAM and I/O port. They are integrated into a single chip.

Also CXP834P16 and CXP834P17 provide sleep/ stop function which enables to lower power consumption.

The CXP834P16 and CXP834P17 are the PROMincorporated version of the CXP83416 and CXP83417 with built-in mask ROM. These provide the additional feature of being able to write directly into the program. Thus, they are most suitable for evaluation use during system development and for small-quantity production.
