Features:

• A wide instruction set (213 instructions) which covers various types of data.
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 400ns at10MHz operation 32kHz at 122µs operation
• Applicable EPROM LCC type 27C128, LCC type 27C256 (Maximum 16K bytes are available.)
• Incorporated RAM capacity 448 bytes (LCD display data area included)
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes ), 1 circuit 2 channels
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer, 32kHz timer/counter
- LCD controller/driver Maximum 128 segments display possible (During 1/4 duty) 4 common outputs, 32 segment outputs Display method: Static, 1/2, 1/3 and 1/4 duty Bias method: 1/2 and 1/3 bias
- Remote control reception circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
- PWM output 14 bits 1 channel, 8 bits 1channel
• Interruption 12 factors, 12 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin ceramic PQFP


Pinout

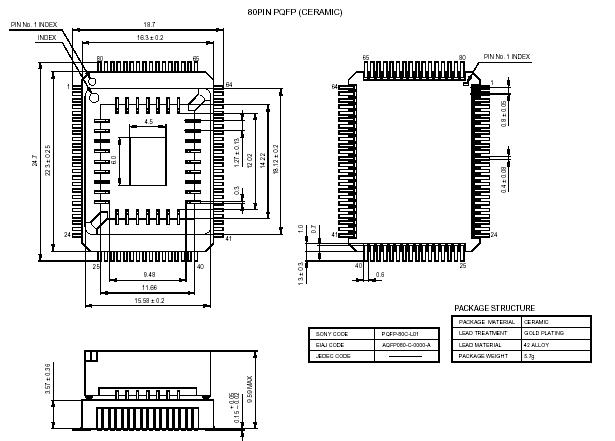

Connection Diagram

Connection Diagram




Description

The CXP83401 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP83412/83416.
