CXP83232A

Features:

• Wide-range instruction system (213 instructions) to cover various types of data.
- 16-bit arithmetic/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 8µs at 500kHz 122µs at 32kHz operation
• Incorporated ROM capacity 32Kbytes (CXP83232A) 40Kbytes (CXP83240A)
• Incorporated RAM capacity 1120bytes (includes LCD display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface 8-bit, 8-stage FIFO incorporated (Auto transfer for 1 to 8 bytes), 1 channel 8-bit clock synchronized type, 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,16-bit capture timer/counter, 32kHz timer/counter
- LCD controller/driver Maximum 160 segment display possible (during 1/4 duty) 4 common output, 40 segment output Display method static, 1/2, 1/3, 1/4 duty Bias method 1/2, 1/3 bias
- Remote control reception circuit 8-bit pulse measuring counter, 6-stage FIFO
- PWM output circuit 14 bits, 1 channel
• Interruption 15 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP

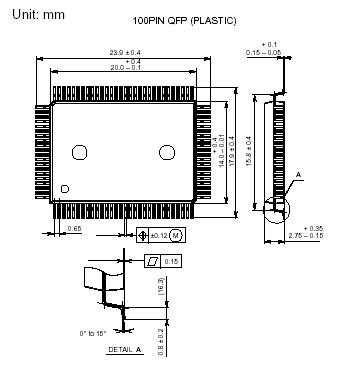

• Package 100-pin plastic QFP/LQFP
• Piggyback/evaluation chip CXP83200A 100-pin ceramic QFP/LQFP

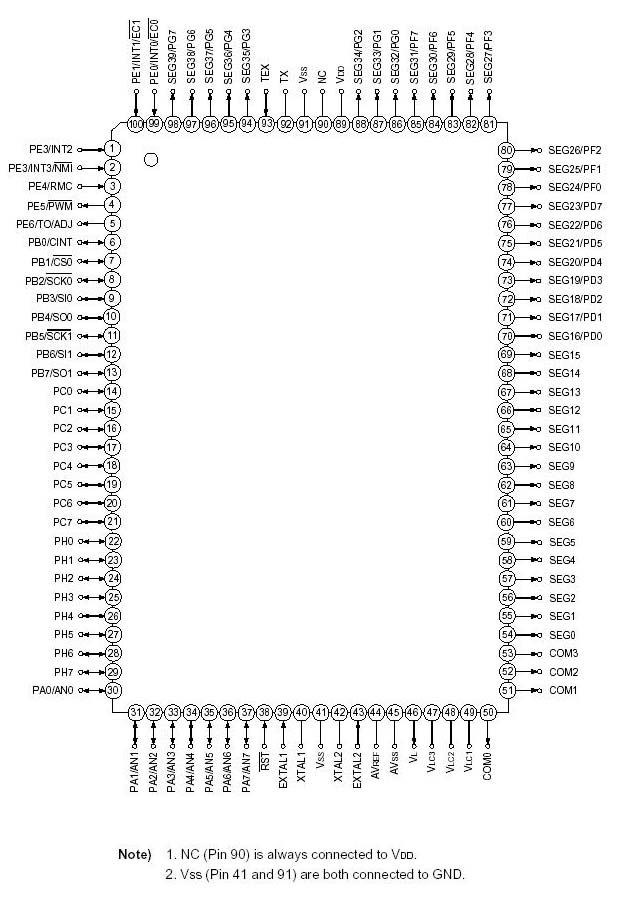

Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	AVss	0.3 to +0.3	V
LCD bias voltage	VLC1, VLC2, VLC3	0.3 to +7.0*1	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
High level output current	IOH	5	mA	Output per pin
High level total output current	IOH	50	mA	Total for all output pins
Low level output current	IOL	15	mA	Value per pin, excluding high current outputs
	IOLC	20	mA	Value per pin*2 for high current outputs
Low level total output current	IOL	100	mA	Total for all output pins
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW	QFP package
		380		LQFP package

Description

The CXP83232A/83240A is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, 32kHz timer/counter, capture timer counter, LCD controller/driver, remote control reception circuit and 14-bit PWM output besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port.

The CXP83232A/83240A also provides a sleep/stop function that enables lower power consumption.
