Product Details

Description



Features:

• Wide-range instruction system (213 instructions) to cover various types of data
- 16-bit arithmetic/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (122µs at 32kHz operation)
• Incorporated PROM capacity 60K bytes
• Incorporated RAM capacity 2048 bytes (including fluorescent display area)
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 20µs/16MHz)
- Serial interface Buffer RAM incorporated (Auto transfer for 1 to 32 bytes), 1 channel 8-bit, 8-stage FIFO incorporated (Auto transfer for 1 to 8 bytes), 1 channel
- Timers 8-bit timer, 8-bit timer/counter, 19-bit time base timer 32kHz timer/counter
- Fluorescent display panel controller/driver High voltage drive output port of 28 pins (40V) Maximum of 196 segments display possible 1 to 16-digit dynamic display Dimmer function On-chip incorporated pull-down resistor
Hardware key scan function Maximum of 12*8 key matrix supportable
- I2C bus interface
- Remote control transmission circuit Auto transmission for 1 to 32 bytes, restart function, carrier output function
- Remote control reception circuit 8-bit pulse measurement counter, 6-stage FIFO
• Interruption 16 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 80-pin plastic QFP



Pinout

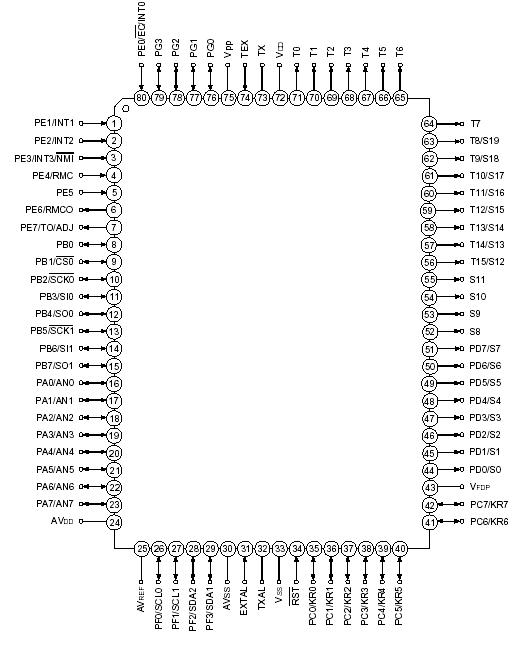

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
Vpp 0.3 to +13.0 V
AVDD AVSS to +7.0*1 V
AVSS 0.3 to +0.3 V
Input voltage VIN 0.3 to +7.0*2 V
Output voltage VOUT 0.3 to +7.0*2 V
Display output voltage VOD VDD 40 to VDD + 0.3 V As P channel transistor is open drain,
VDD is reference.
High level output current IOH 5 mA All pins excluding outputs*3 (value per pin)
IODH1 15 mA Display outputs S0 to S11 (value per pin)
IODH2 35 mA Display outputs T0 to T7, and T8/S19 to
T15/S12 (value per pin)
High level total output current IOH 40 mA Total for all pins excluding display outputs
IODH 100 mA Total for all output pins
Low level output current IOL 15 mA Port (value per pin)
IOLC 20 mA Large current Port (value per pin)*4
Low level total output current IOL 100 mA Total for all output pins
Operating temperature Topr 10 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW QFP package



Description

The CXP829P60 is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, fluorescent display panel controller/driver, I2C bus interface, remote control transmission circuit, remote control reception circuit, and 32kHz timer/counter besides the basic configurations of 8-bit CPU, PROM, RAM, and I/O port.

This LSI also provides sleep/stop functions which enable to lower power consumption.

The CXP829P60 is the PROM-incorporated version of the CXP82960 with built-in mask ROM, and it is able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
