Product Details

Description



Features:

• Wide-range instruction system (213 instructions) to cover various types of data
-16-bit operation/multiplication and division/ Boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 122µs at 32kHz operation
• Applicable EPROM LCC type 27C512 (Maximum 60K bytes are available.)
• Incorporated RAM capacity 1536 bytes (Including fluorescent display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel 8-bit clock sync type, 1 channel
- Timers 8-bit timer 8-bit timer/counter 19-bit time base timer 16-bit capture timer/counter 32kHz timer/counter
- Fluorescent display panel controller/driver Supports the universal grid fluorescent display panel. High voltage drive output port of 56 pins (40V) Maximum of 640 segments display possible Display timing number of 1 to 20 Dimmer function Incorporated pull-down resistor (Mask option) Hardware key scan function (Maximum 16*8 key matrix compatible)
- Remote control receiving circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
- PWM output 14 bits, 1 channel
• Interruption 16 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin ceramic PQFP


Pinout

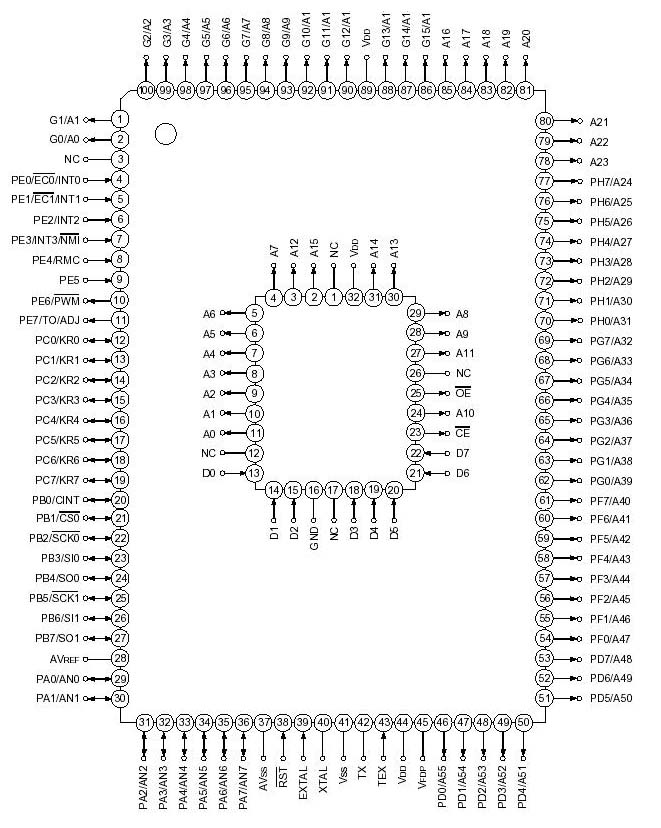

Connection Diagram




Description

The CXP82800 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP82832/82840/82852/82860.
