CXP827P16

Features:

• Instruction set which supports a wide array of data types
- 213 types of instructions which include 16-bit calculations, multiplication and division arithmetic,and Boolean bit operations.
• Minimum instruction cycle 400ns at 10MHz 122µs at 32kHz
• On-chip PROM 16 Kbytes
• On-chip RAM 448 bytes (Including fluorescent display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation system (conversion rate 32µs/10MHz)
- Serial interface On-chip 8-bit, 8-stage FIFO (1 to 8 bytes auto transfer),2 channels for 1 circuit
- Timers 8-bit timer 8-bit timer/counter 19-bit time-base timer 32kHz timer/counter
- Fluorescent display panel controller/driver High voltage drive output port of 24 pins (40V) Maximum of 144 segments display available 1 to 16-digit dynamic display Dimmer function On-chip pull-down resistor Hardware key scan function (Maximum of 8*8 key matrix available)
- Remote control receiver circuit On-chip 6-stage FIFO 8-bit pulse measurement counter
- PWM output 8-bit, 1-channel
• Interrupts 13 factors, 13 vectors multi-interruption possible
• Standby mode SLEEP/STOP
• Package 64-pin plastic SDIP

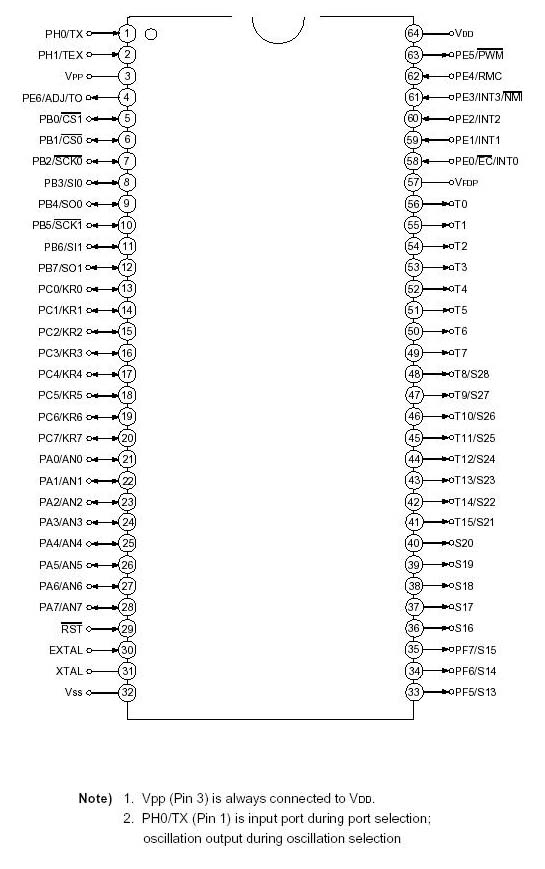

Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	Vpp	0.3 to +13.0	V	Incorporated PROM
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
Display output voltage	VOD	VDD 40 to VDD + 0.3	V	As P channel transistor is open drain, VDD voltage is determined as reference.
High level output current	IOH	5	mA	Other than display putput pins*2: per pin
	IODH1	15	mA	Display output S13 to S20: per pin
	IODH2	35	mA	Display output T0 to T7 T8/S28 to T15/S21: per pin
High level total output current	IOH	40	mA	Total of other than display output pins
	IODH	100	mA	Total of all output pins
Low level output current	IOL	15	mA	Port 1 pin
	IOLC	20	mA	Large current port pin*3
Low level total output current	IOL	100	mA	Total of all pins
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	1000	mW

Description

The CXP827P16 microcomputer is composed of a CPU, ROM, RAM, and I/O ports. These chips feature many other high-performance circuits in a single-chip CMOS design, including an A/D converter, serial interface, timer/counter, time-base timer, fluorescent display panel controller/driver, remote control receiver, PWM output circuit and 32kHz timer/counter.

This IC also includes sleep/stop functions which can be used to achieve low power consumption. CXP827P16 is the PROM-incorporated version of the CXP82716 with built-in mask ROM, and it is able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
