Product Details

Description



Features:

• A wide instruction set (213 instructions) which cover various types of data.
- 16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 122µs at 32kHz operation
• Applicable EPROM LCC type 27C128, LCC type 27C256(Maximum 16Kbytes are available)
• Incorporated RAM capacity 448 bytes (LCD display data area included)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 circuit 2channels
- Timer 8-bit timer, 8-bit timer/counter,19-bit time base timer, 32kHz timer/counter
- Fluorescent display panel controller/driver Maximum 144 segments display possible 1 to 16-digit dynamic display 24 high voltage drive output port Dimmer function High voltage drive output (40V) On-chip pull-down resistor (Mask option) Hardware key scan function (Maximum 8*8 key matrix compatible.)
- Remote control receiving circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
- PWM output 8bit, 1channel
• Interruption 13 factors, 13 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 64-pin ceramic PSDIP


Pinout

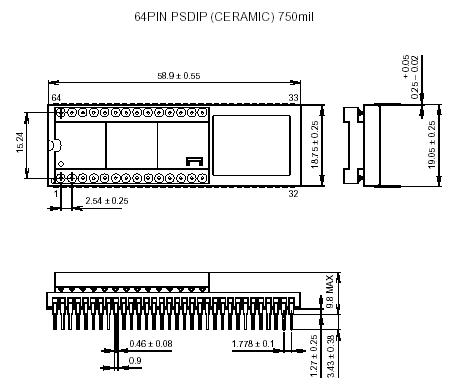

Connection Diagram

Connection Diagram




Description

The CXP82700 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP82712/82716.
