Product Details

Description



Features:

• Instruction set which supports a wide array of data types
- 213 types of instructions which include 16-bit calculations, multiplication and division arithmetic, and boolean bit operations.
• Minimum instruction cycle 400ns for 10MHz, 122µs for 32kHz operation
• On-chip PROM 16K bytes
• On-chip RAM 448 bytes (Including fluorescent display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation system(conversion rate 32µs/10MHz)
- Serial interface On-chip 8-bit, 8-stage FIFO (1 to 8 bytes auto transfer), 1 circuit 2-channel
- Timers 8-bit timer 8-bit timer/counter 19-bit time base timer 32kHz timer/counter
- Fluorescent display controller/driver Maximum of 336 segments display available 1 to 16 digits dynamic display immer function High voltage tolerance output (40V) On-chip pull-down resistor (Mask option) Hardware key scan function (Maximum of 8 x 16 key matrix available)
- Remote control receiver circuit On-chip 6-stage FIFO 8-bit pulse measurement counter
• Interrupts 13 factors, 13 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin plastic QFP

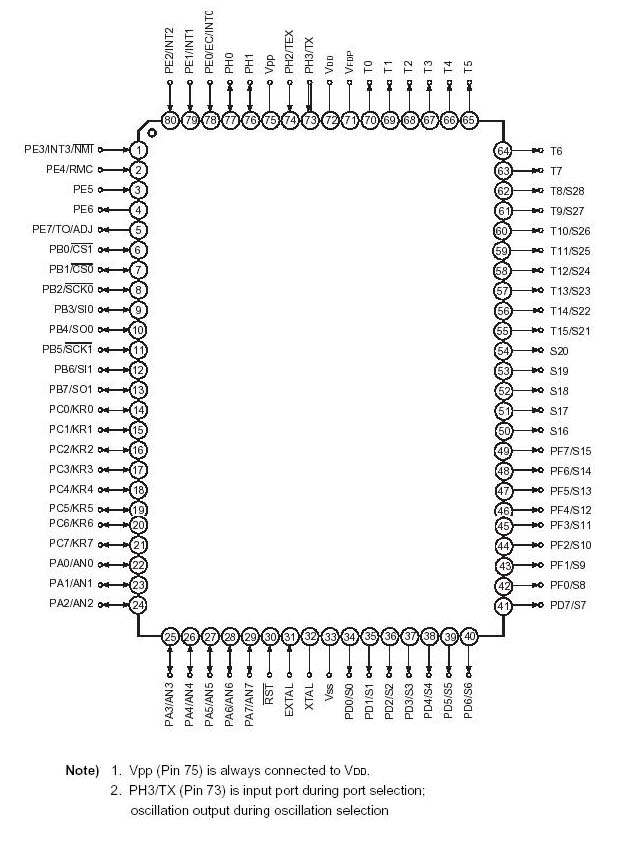

Pinout

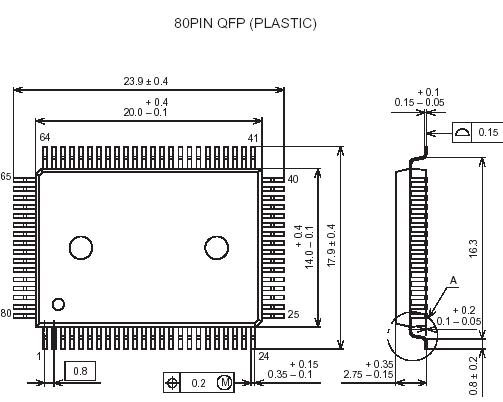

  Connection Diagram

  Connection Diagram

  Connection Diagram




Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
Vpp 0.3 to +13.0 V Incorporated PROM
Input voltage VIN 0.3 to +7.0*1 V
Output voltage VOUT 0.3 to +7.0*1 V
Display output voltage VOD VDD 40 to VDD + 0.3 V As P channel transistor is open drain,
VDD voltage is determined as reference.
High level output current IOH 5 mA Other than display putput pins*2: per pin
IODH1 15 mA Display output S0 to S20: per pin
IODH2 35 mA Display output T0 to T7
T8/S28 to T15/S21: per pin
High level total output current IOH 40 mA Total of other than display output pins
IODH 100 mA Total of all output pins
Low level output current IOL 15 mA Port 1 pin
IOLC 20 mA Large current port*3
Low level total output current IOL 100 mA Entire pin total
Operating temperature Topr 10 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW



Description

The CXP826P16 microcomputer is composed of a CPU, ROM, RAM, and I/O ports. These chips feature mny other high-performance circuits in a single-chip CMOS design, including an A/D converter, serial iterface, timer/counter, time-base timer, fluorescent splay controller/driver, remote control receiver and 32Hz timer/counter.

This device also includes a power-on reset function and sleep/stop functions which can be used to achieve low power consumption.

The CXP826P16 is the PROM-incorporated version of the CXP82616 with built-in mask ROM, and it is able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production. the CXP82616 with built-in mask ROM, and it is able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
