Product Details

Description



Features:

• A wide instruction set (213 instructions) which cover various types of data.
- 16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 122µs at 32kHz operation
• Applicable EPROM LCC type 27C128, LCC type 27C256 (Maximum 16K bytes are available.)
• Incorporated RAM capacity 448 bytes ( fluorescent display data area included)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 circuit 2channels
- Timer 8-bit timer, 8-bit timer/counter,19-bit time base timer, 32kHz timer/counter
- Fluorescent display panel controller/driver Maximum 336 segments display possible 1 to 16-digit dynamic display Dimmer function High voltage drive output (40V) On-chip pull-down resistor (Mask option) Hardware key scan function
(Maximum 8*16 key matrix compatible.)
- Remote control receiving circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
• Interruption 13 factors, 13 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 80-pin ceramic PQFP


Pinout

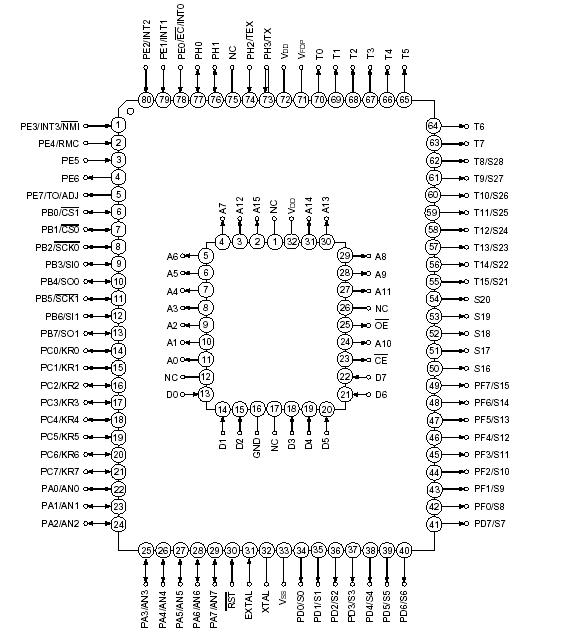

Connection Diagram


Description

The CXP82600 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP82612/82616.
