CXP825P40

Features:

• Instruction set which supports a wide array of data types 213 types
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 400ns/10MHz
• Incorporated PROM capacity 40K bytes
• Incorporated RAM capacity 1120 bytes (Including the fluorescent display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive comparison type (conversion time: 32µs at 10MHz)
- Serial interface 1-channel data interface with an 8-bit, 8-stage FIFO (1 to 8 bytes automatic transfer) 1 channel, 8-bit clock synchronized interface
- Timers 8-bit timer 8-bit timer/counter 19-bit time-base timer 16-bit capture timer/counter
- Fluorescent display tube controller/driver Display of up to 336 segments 1 to 16 digits dynamic display Dimmer function High voltage tolerance output (40V) Built-in pull-down resistor
- Remote control receiver Built-in noise suppressor circuit Built-in 8-bit pulse counter and 6-stage FIFO
• Interrupts 14 factors, 15 vectors, multiple interrupt processing
• Standby mode Sleep/stop

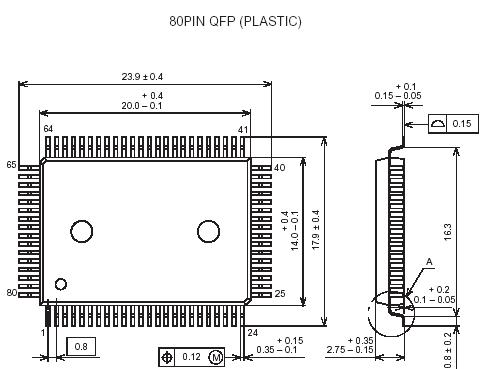

• Package 80-pin plastic QFP

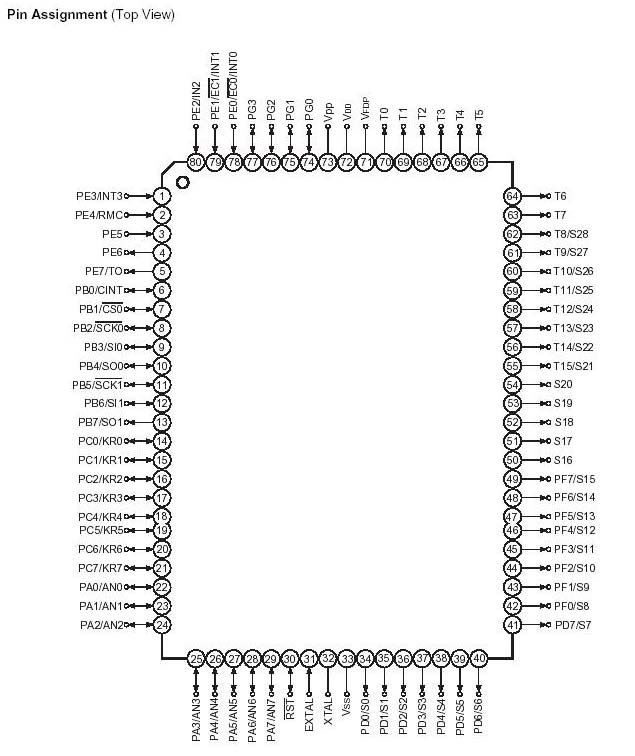

Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
Display output voltage	VOD	VDD 40 to VDD + 0.3	V	As P channel transistor is open drain, VDD voltage is determined as reference.
High level output current	IOH	5	mA	Other than display putput pins*2: per pin
	IODH1	15	mA	Display output S0 to S20: per pin
	IODH2	35	mA	Display output T0 to T7 T8/S28 to T15/S21: per pin
High level total output current	IOH	40	mA	Total of other than display output pins
	IODH	100	mA	Total of all output pins
Low level output current	IOL	15	mA	Port 1 pin
	IOLC	20	mA	Large current port*3 : per pin
Low level total output current	IOL	100	mA	Entire pin total
Operating temperature	Topr	10 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW

Description

The CXP825P40 is a highly integrated CMOS 8-bit single chip microcomputer which is mainly composed of an 8-bit CPU, PROM, RAM, and I/O ports. This microcomputer features many other high-performance circuits in a single chip CMOS design, including an A/D converter, serial interface, timer/counter, timebase timer, capture timer/counter, fluorescent display tube controller/driver, remote control receiver. Also,the CXP825P40 provides the power-on reset function as well as the sleep/stop function which assures reduced power consumption.
Being a PROM-incorporated version of the CXP82540 which has on-chip mask ROM, the CXP825P40 permits program writing. Therefore, it is ideally suited for use in system development stage evaluation and job lot procuction.
