CXP82400A

Features: • Wide-range instruction system (213 instructions) to cover various types of data-16-bit operation/multiplication and division/Boolean bit operation instructions• Minimum instruction cycle 400ns at 10MHz operation 122µs at 32kHz operation• Applicable EPROM LCC typ...

product image

CXP82400A Picture
See larger image
SeekIC No. : 004318868 Detail

CXP82400A: Features: • Wide-range instruction system (213 instructions) to cover various types of data-16-bit operation/multiplication and division/Boolean bit operation instructions• Minimum instr...

CXP82400A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXP82400A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide-range instruction system (213 instructions) to cover various types of data
-16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 122µs at 32kHz operation
• Applicable EPROM LCC type 27C512 (Maximum 40K bytes are available.)
• Incorporated RAM capacity 1120 bytes (Including fluorescent display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel 8-bit clock sync type, 1 channel
- Timers 8-bit timer 8-bit timer/counter 19-bit time base timer 16-bit capture timer/counter 32kHz timer/counter
- Fluorescent display panel controller/driver Maximum of 384 segments display possible 1 to 16-digit dynamic display Dimmer function High voltage drive output (40V) On-chip pull-down resistor (Mask option) Hardware key scan function (Maximum 16*8 key matrix compatible)
- Remote control receiving circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
- PWM output 14 bits, 1 channel
- CTL duty detection circuit
- High-speed output circuit RTG 4pins
• Interruption 19 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin ceramic QFP


Pinout

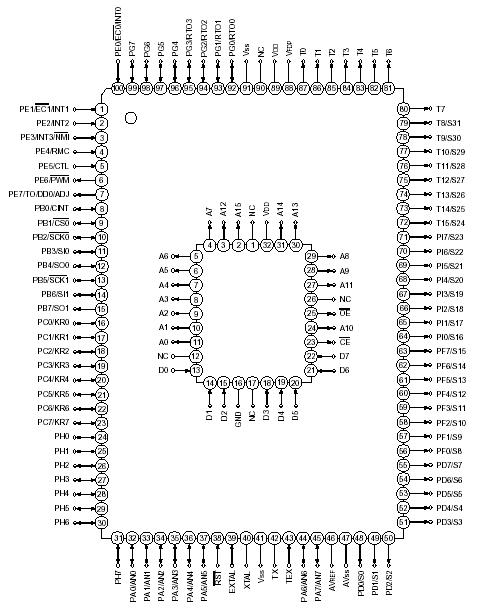

Connection Diagram


Description

The CXP82400A is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP82432A/82440A.
