Product Details

Description



Features:

• Instruction set which supports a wide array of data types 213 types
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 400ns/10MHz
• Incorporated PROM capacity 24K bytes
• Incorporated RAM capacity 704 bytes (Including fluorescent display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive comparison type (conversion time: 32µs at 10MHz)
- Serial interface 1 channel data interface with an 8-bit, 8-stage FIFO (1 to 8 byte automatic transfer) 1-channel, 8-bit clock synchronized interface
- Timers 8-bit timer 8-bit timer/counter 19-bit time-base timer 16-bit capture timer/counter
- Fluorescent display tube controller/driver Display of up to 336 segments 1 to 16 digit dynamic display Dimmer function High voltage tolerance output (40V) Built-in pull-down resistor
- Remote control receiver Built-in noise suppressor circuit Built-in 8-bit pulse counter and 6-stage FIFO
• Interrupts 14 factors, 15 vectors, multiple interrupt pocessing
• Standby mode Sleep/stop
• Package 80-pin plastic QFP



Pinout

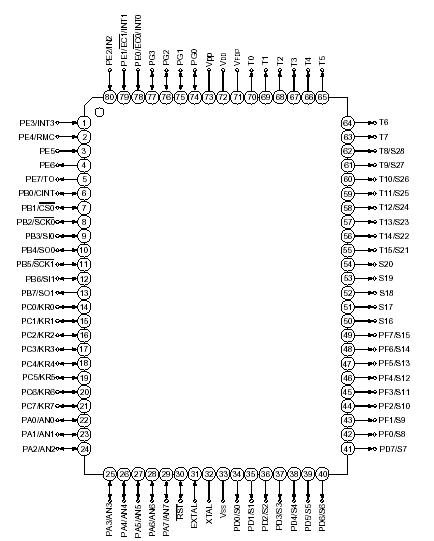

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
Input voltage VIN 0.3 to +7.0*1 V
Output voltage VOUT 0.3 to +7.0*1 V
Display output voltage VOD VDD 40 to VDD + 0.3 V As P channel transistor is open drain,
VDD voltage is determined as standerd.
High level output current IOH 5 mA Other than display output pins*2 : per pin
IODH1 15 mA Display outputs S0 to S20: per pin
IODH2 35 mA Display outputs T0 to T7,
T8/S28 to T15/S21: per pin
High level total output current IOH 40 mA Total for all display outputs
IODH 100 mA Port 1
Low level output current IOL 15 mA Large current Port 1 *3
IOLC 20 mA Entire pin total
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW



Description

The CXP823P24 is a highly integrated CMOS 8-bit single-chip microcomputer which is mainly composed of an 8-bit CPU, PROM, RAM and I/O ports. This microcomputer features many other high-performance circuits in a single-chip CMOS design, including an A/D converter, serial interface, timer/counter, timebase timer, capture timer/counter, fluorescent display tube controller/driver, and remote control receiver.
Also, the CXP823P24 provides the power-on reset function as well as the sleep/stop function which assures reduced power consumption. Being a PROM-incorporated version of the CXP82324 which has on-chip mask ROM, the CXP823P24 permits program writing. Therefore, it is ideally suited for use in system development stage evaluation and job lot production.
