Features:

• Wide-range instruction system (213 instructions) to cover various types of data
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation
• Applicable EPROM LCC type 27C128, LCC type 27C256(Maximum 24K bytes are available.)
• Incorporated RAM capacity 704 bytes (Including fluorescent display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method(Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel 8-bit clock sync type, 1 channel
- Timer 8-bit timer 8-bit timer/counter 19-bit time base timer 16-bit capture timer/counter
- Fluorescent display panel controller/driver Maximum 336 segment display possible 1 to 16-digit dynamic display Dimmer function High voltage drive output (40V) On-chip pull-down resistor (Mask option) Hardware key scan function (Maximum 16*8 key matrix compatible)
- Remote control reception circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
• Interruption 14 factors, 14 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin ceramic QFP



Pinout

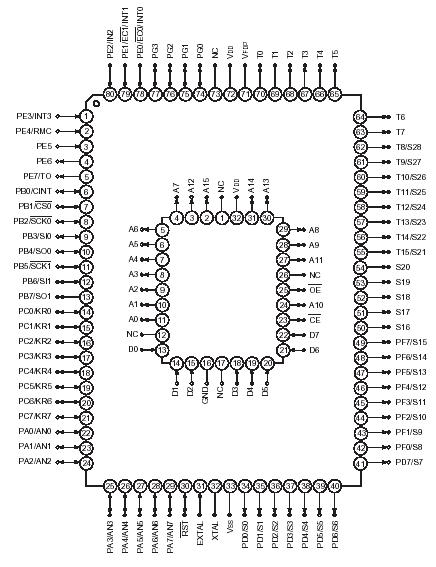

  Connection Diagram


Description

The CXP82300 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP82316/82320/82324.
