Product Details

Description



Features:

• A wide instruction set (213 instructions) which cover various types of data
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 333ns/12MHz (Supply voltage 3.0 to 5.5V) During operation 250ns/16MHz (Supply voltage 4.5 to 5.5V) During operation 122µs/32kHz
• Incorporated PROM capacity 48Kbytes
• Incorporated RAM capacity 1344bytes
• Peripheral functions
- A/D converter 8-bit, 12-channel, successive approximation system (Conversion time 20.0µs/16MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO, 1-channel (1 to 8 bytes auto transfer) 8-bit serial I/O, 1-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer 32kHz timer/counter
- High precision timing pattern generator PPG 19 pins 32-stage programmable RTG 5-pins 2-channel
- PWM/DA gate output 12-bit, 2-channel (Repetitive frequency 62kHz/16MHz)
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14-bit, 1-channel
- Remote control receiving circuit 8-bit pulse measuring counter, 6-stage FIFO
• Interruption 20 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin plastic QFP/LQFP



Pinout

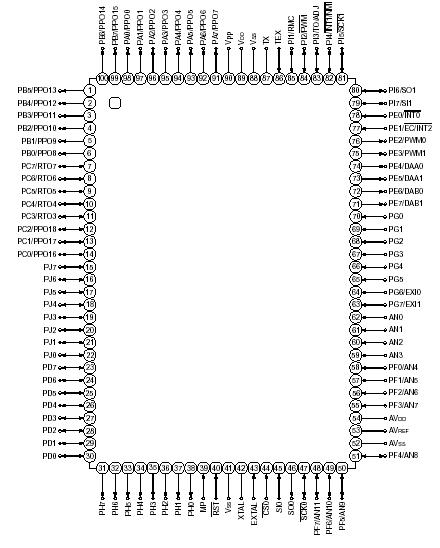

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
AVDD AVss to +7.0*1 V Incorporated PROM
AVSS 0.3 to +0.3 V
Input voltage VIN 0.3 to +7.0*2 V
Output voltage VOUT 0.3 to +7.0*2 V
Medium withstand output voltage VOUTP 0.3 to +15.0 V PH pin
High level output current IOH 5 mA
High level total output current IOH 50 mA Total of all output pins
Low level output current IOL 15 mA Other than high current output
pins: per pin
IOLC 20 mA High current port pin*3: per pin
Low level total output current IOL 130 mA Total for all outputs
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW QFP package type
380 LQFP package type



Description

The CXP818P48A is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface,timer/counter, time base timer, vector interruption,high precision timing pattern generation circuit, PWM generator, PWM for tuner, 32kHz timer/event counter, remote control receiving circuit, as well as basic configurations like 8-bit CPU, PROM, RAM and I/O port. They are integrated into a single chip.
Also CXP818P48A provides sleep/stop function which enables to lower power consumption and ultra low speed instruction mode in 32kHz operation.
This IC is the PROM-incorporated version of the CXP81848A with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
