Product Details

Description



Features:

• A wide instruction set (213 instructions) which covers various types of data
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5 to 5.5V) 122µs at 32kHz operation (2.7 to 5.5V)
• Incorporated ROM capacity 20K bytes (CXP81720B) 24K bytes (CXP81724B)
• Incorporated RAM capacity 800 bytes
• Peripheral functions
- A/D converter 8 bits, 12 channels, successive approximation method (Conversion time of 20.0µs at 16MHz)
- Serial interface Incorporated 8-bit and 8-stage FIFO, 1 channel (Auto transfer for 1 to 8 bytes) 8-bit clock sync type, 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time-base timer 32kHz timer/counter
- High-precision timing pattern generator PPG: maximum of 19 pins, 32 stages programmable RTG: 5 pins, 2 channels
- PWM/DA gate output PWM: 12 bits, 2 channels (Repetitive frequency 62kHz/16MHz) DA gate pulse output: 12 bits, 4 channels
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14 bits, 1 channel
- Remote control reception circuit 8-bit pulse measuring counter, 6-stage FIFO
• Interruption 20 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP/LQFP
• Piggyback/evaluator CXP81800



Pinout

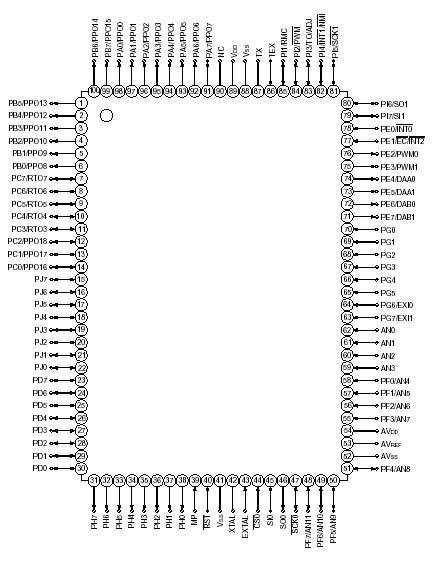

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
AVDD AVss to +7.0*1 V
AVSS 0.3 to +0.3 V
Input voltage VIN 0.3 to +7.0*2 V
Output voltage VOUT 0.3 to +7.0*2 V
Medium withstand output voltage VOUTP 0.3 to +15.0 V PH pin
High level output current IOH 5 mA
High level total output current IOH 50 mA Total of all output pins
Low level output current IOL 15 mA Other than high current output
pins: per pin
IOLC 20 mA High current port pin*3: per pin
Low level total output current IOL 130 mA Total for all outputs
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW QFP package type
380 LQFP package type



Description

The CXP81720B/81724B is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time-base timer, highprecision timing pattern generation circuit, PWM output, 32kHz timer/counter, remote control reception circuit, as well as basic configurations like 8-bit CPU, ROM, RAM and I/O port. They are integrated into a single chip.
Also CXP81720B/81724B provides sleep/stop functions which enables to lower power consumption.
