Features: • A wide instruction set (213 instructions) which covers various types of data 16-bit operation/multiplication and division/Boolean bit operation instructions• Minimum instruction cycle 167ns at 24MHz operation 122µs at 32kHz operation• Incorporated ROM 120K bytes...
CXP7500P10: Features: • A wide instruction set (213 instructions) which covers various types of data 16-bit operation/multiplication and division/Boolean bit operation instructions• Minimum instruct...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item | Symbol | Rating | Unit | Remarks |
Supply voltage | VDD | 0.3 to +7.0 | V | |
VPP | 0.3 to +13.0 | V | Incorporated PROM | |
Input voltage | VIN | 0.3 to +7.0*1 | V | |
Output voltage | VOUT | 0.3 to +7.0*1 | V | |
Mid-voltage drive output voltage | VOUTP | 0.3 to +15.0 | V | |
High level output current | IOH | 5 | mA | |
High level total output current | IOH | 50 | mA | Total of all output pins |
Low level output current | IOL | 15 | mA | Ports excluding large current output (value per pin) |
IOLC | 20 | mA | Large current output pins*2 (value per pin) | |
Low level total output current | IOL | 130 | mA | Total for all outputs |
Operating temperature | Topr | 20 to +75 | °C | |
Storage temperature | Tstg | 55 to +150 | °C | |
Allowable power dissipation | PD | 1000 | mW | SDIP-64P-01 |
600 | QFP-64P-L01 | |||
875 | mW | SDIP-52P-01 |

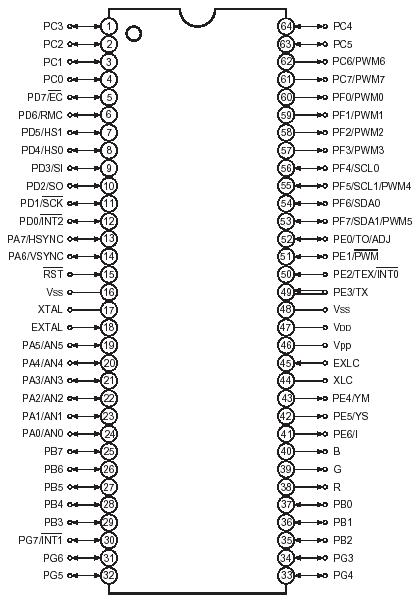

The CXP7500P10/7500P11 is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, on-screen display function, I2C bus interface,PWM output, remote control reception circuit, HSYNC counter, watchdog timer, 32kHz timer/counter besides the basic configurations of 8-bit CPU, ROM, RAM, I/O ports.
The CXP7500P10/7500P11 also provides a sleep function that enables to lower the power consumption. CXP7500P10/7500P11 is the PROM-incorporated version of the CXP750096/750010/750097/750011 with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
