Features:

• A wide instruction set (211 instructions) which covers various types of data.
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 167ns at 24MHz operation (4.5 to 5.5V) 333ns at 12MHz operation (2.7 to 5.5V) 122µs at 32kHz operation (2.7 to 5.5V)
• Incorporated PROM capacity 120K bytes
• Incorporated RAM capacity 4096 bytes
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time 10.3µs at 24MHz)
- Serial interface Srart-stop synchronization (UART), 1 channel Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 2 channels 8-bit clock syncronization (MSB/LSB first selectable), 1 channel
- Timer 8-bit timer 2 channels, 8-bit timer/counter 2 channels,19-bit time-base timer, 16-bit capture timer/counter 32kHz timer/counter
- Remote control receive circuit Noise elimination circuit 8-bit pulse measuring counter, 6-stage FIFO
- PWM output 12 bits, 2 channels
• Interruption 22 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP/LQFP



Pinout

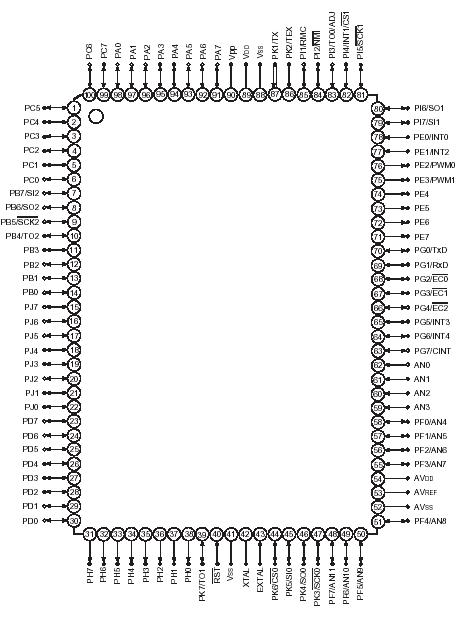

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
AVDD AVSS to +7.0*1 V Incorporated PROM
AVSS 0.3 to +0.3 V
AVREF AVSS to +7.0 V
Input voltage VIN 0.3 to +7.0*2 V
Output voltage VOUT 0.3 to +7.0*2 V
High level output current IOH 5 mA Output (value per pin)
High level total output current IOH 50 mA Total of all output pins
Low level output current IOL 15 mA Ports excluding large current output
(value per pin)
IOLC 20 mA Large current outputs (value per pin) *3
Low level total output current IOL 130 mA Total for all outputs
Operating temperature Topr 20 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600   QFP package
380 mW LQFP package



Description

The CXP7400P10 is a CMOS 8-bit microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, capture timer/counter, remote control receive circuit, PWM output, and the like besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port.
The CXP7400P10 also provides the sleep/stop functions that enable lower power consumption.
The CXP7400P10 is the PROM-incorporated version of the CXP740056/740096/740010 with builtin mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
