Product Details

Description



Features:

• Single 5V power supply
• Low power consumption
• Built-in line locked PLL circuit
• Built-in 2 comb filters (Addition of delayed and non-delayed output signal.)
• Built-in peripheral circuits


Pinout

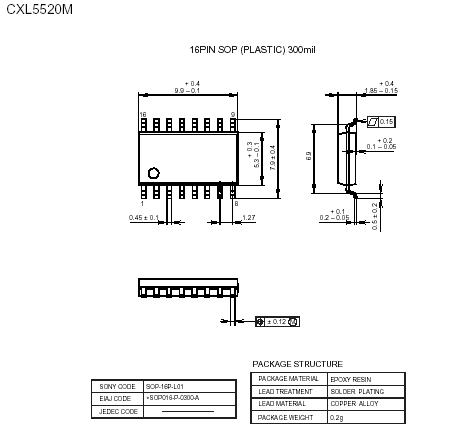

Connection Diagram




Specifications

• Supply voltage VDD                                                                     +6 V
• Operating temperature Topr                                     10 to +60 °C
• Storage temperature Tstg                                      55 to +150 °C
• Allowable power dissipation PD CXL5520M                           400 mW
• Allowable power dissipation PD CXL5520P                           800 mW




Description

CXL5520M is a CMOS-CCD baseband 1H delay line designed for TV signal processing.
