Product Details

Description



Features:

• Single 5V power supply
• Low power consumption 95mW (Typ.)
• Built-in peripheral circuits


Pinout

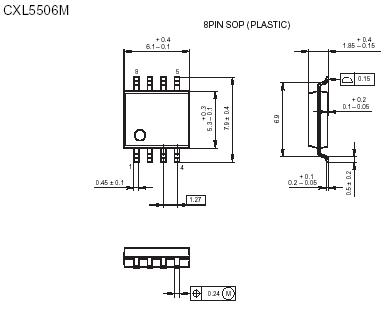

Connection Diagram

Connection Diagram




Specifications

• Supply voltage                                                            VDD 6 V
•Operating temperature Topr                           10 to +60 °C
• Storage temperature Tstg                            55 to +150 °C
• Allowable power dissipation PD
CXL5506M                                                                     350 mW
CXL5506P                                                                     480 mW


Description

The CXL5506M/P are CMOS-CCD delay line ICs that provide 1H delay time for PAL signals including the external low-pass filter.
