CXL5502P

Features: • Single power supply (5V)• Low power consumption 95mW (Typ.)• Built-in peripheral circuits• Clamp level of I/O signal can be selected• Built-in quadruple PLL circuitPinoutSpecifications• Supply voltage VDD 6 V •Operating temperature Topr10 to +...

product image

CXL5502P Picture
See larger image
SeekIC No. : 004318772 Detail

CXL5502P: Features: • Single power supply (5V)• Low power consumption 95mW (Typ.)• Built-in peripheral circuits• Clamp level of I/O signal can be selected• Built-in quadruple PLL...

CXL5502P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXL5502P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single power supply (5V)
• Low power consumption 95mW (Typ.)
• Built-in peripheral circuits
• Clamp level of I/O signal can be selected
• Built-in quadruple PLL circuit

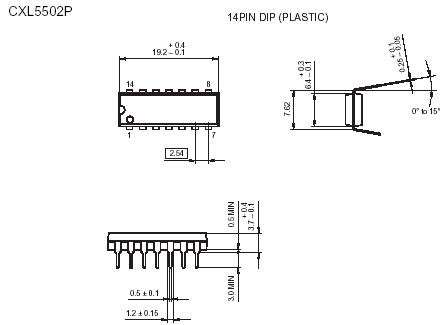

Pinout

Connection Diagram




Specifications

• Supply voltage VDD                                                             6 V
•Operating temperature Topr                            10 to +60 °C
• Storage temperature Tstg                            55 to +150 °C
• Allowable power dissipation PD
•CXL5502M                                                                    400 mW
•CXL5502N                                                                    260 mW
•CXL5502P                                                                    800 mW


Description

The CXL5502P are CMOS-CCD delay line ICs that provide 1H delay time for NTSC signals including the external low-pass filter.

The ICs contain a PLL circuit (quadruple progression).
