Product Details

Description



Features:

• Single power supply (5V)
• Low power consumption 95mW (Typ.)
• Built-in peripheral circuits
• Clamp level of I/O signal can be selected
• Built-in quadruple PLL circuit


Pinout

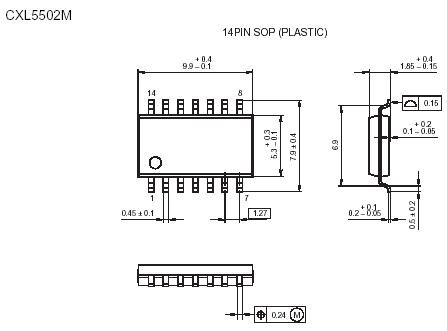

Connection Diagram




Specifications

• Supply voltage VDD                                                             6 V
•Operating temperature Topr                            10 to +60 °C
• Storage temperature Tstg                            55 to +150 °C
• Allowable power dissipation PD
•CXL5502M                                                                    400 mW
•CXL5502N                                                                    260 mW
•CXL5502P                                                                    800 mW


Description

The CXL5502M/N/P are CMOS-CCD delay line ICs that provide 1H delay time for NTSC signals including the external low-pass filter.

The ICs contain a PLL circuit (quadruple progression).
