CXL5005M

Features: • Low power consumption 90mW (Typ.)• Small size package (14-pin SOP, DIP)• Low differential gain DG = 3% (Typ.)• Input signal ampiitude 180 IRE (= 1.28Vp-p, max.)• Low input clock amplitude operation 200mVp-p (Min.)• Built-in triple PLL circuit• ...

product image

CXL5005M Picture
See larger image
SeekIC No. : 004318768 Detail

CXL5005M: Features: • Low power consumption 90mW (Typ.)• Small size package (14-pin SOP, DIP)• Low differential gain DG = 3% (Typ.)• Input signal ampiitude 180 IRE (= 1.28Vp-p, max.)&#...

CXL5005M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXL5005M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low power consumption 90mW (Typ.)
• Small size package (14-pin SOP, DIP)
• Low differential gain DG = 3% (Typ.)
• Input signal ampiitude 180 IRE (= 1.28Vp-p, max.)
• Low input clock amplitude operation 200mVp-p (Min.)
• Built-in triple PLL circuit
• Built-in peripheral circuits (clock driver, timing generator, auto-bias and output circuits)


Pinout

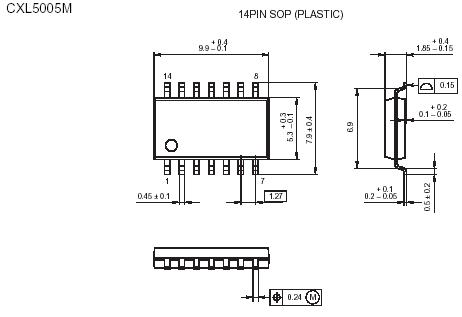

Connection Diagram

Connection Diagram




Specifications

• Supply voltage VDD 11 V
• Supply voltage VCL 6 V
•Operating temperature Topr 10 to +60 °C
• Storage temperature Tstg 55 to +150 °C
• Allowable power dissipation PD
  CXL5005M 400 mW
  CXL5005P 800 mW


Description

The CXL5005M/P are general-purpose CCD delay line ICs which provide 1H delay time of NTSC.
