CXL1502M

Features: • Single power supply 5V• Low power consumption• Built-in peripheral circuits• Completely adjustment free• Built-in triple progression PLL circuit• For PAL signalsPinoutSpecifications• Supply voltage VDD 6 V•Operating temperature Topr10 to ...

product image

CXL1502M Picture
SeekIC No. : 004318749 Detail

CXL1502M: Features: • Single power supply 5V• Low power consumption• Built-in peripheral circuits• Completely adjustment free• Built-in triple progression PLL circuit• For ...

floor Price/Ceiling Price

Part Number:
CXL1502M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single power supply 5V
• Low power consumption
• Built-in peripheral circuits
• Completely adjustment free
• Built-in triple progression PLL circuit
• For PAL signals



Pinout

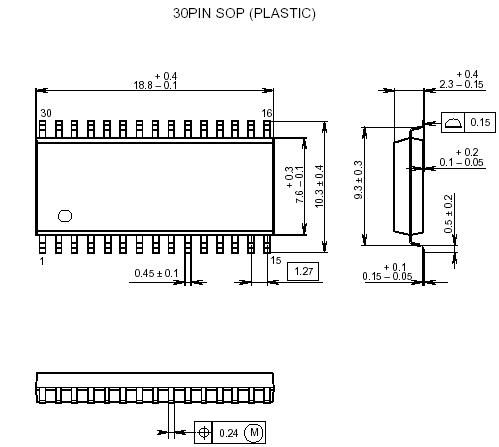

  Connection Diagram




Specifications

• Supply voltage VDD                                                   6 V
•Operating temperature Topr                  10 to +60 °C
• Storage temperature Tstg                   55 to +150 °C
• Allowable power dissipation PD                        500 mW



Description

The CXL1502M is a CMOS-CCD signal processor designed for 8-mm video signal processing. combination with the 8-mm video Y/C signal processing IC CXA1200Q, this IC configures a comb filter for Y/C separation in recording an image, elimination of line crawling and crosstalk in playing back.
